Brand: Imco

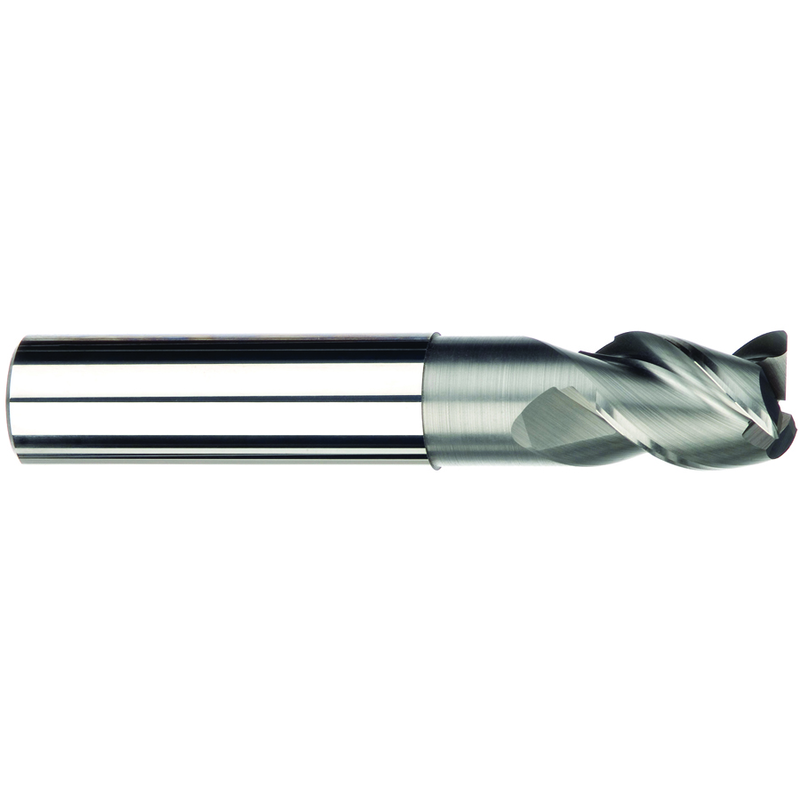

Imco DD4033124 5/8" x 5/8" x 3/4" x 5" MG M203N 3F SL Streaker Mill
SKU: FTS-DD4033124
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 33124 5/8" x 5/8" x 3/4" x 5" MG M203N 3F SL Streaker MillFull Description
| Cutting Diameter (DC) | 5/8" | Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Shank Type | Plain |
| Depth of Cut Maximum (APMX) | 3/4" | End Shape | Square |
| Overall Length (OAL) | 5" | Usable Length (LU) | 55 mm |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625" |
| Coating | Uncoated | Series/List # | M203N-SQ |
• Solid carbide 3 flute square end 45 helix with neck relief. • Streakers increase productivity when machining all types of aluminum including high silicon, die cast, and extruded metal parts. • Streakers resist clogging and are designed for aggressive chip evacuation under extremely high chip loads while maintaining excellent surface finish. • Streakers are proven to work effectively at operating speeds as low as 3,000 RPM and reach their peak performance at speeds above 10,000 RPM. • Achieve maximum performance in: aluminum & non-ferrous metals .
