Brand: Imco

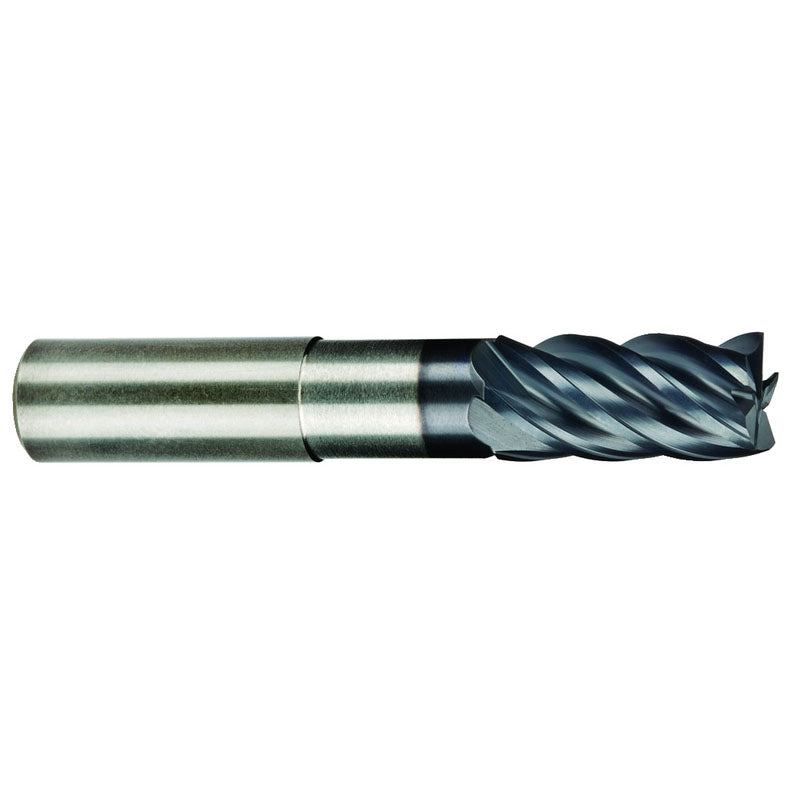

Imco DD4065776 5/8" x 5/8" x 3/4" x 4" LBS=2-1/8 AlCrNX M525N 5F .030R enDURO Mill
SKU: FTS-DD4065776
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 65776 5/8" x 5/8" x 3/4" x 4" LBS=2-1/8 AlCrNX M525N 5F .030R enDURO MillFull Description
| Cutting Diameter (DC) | 5/8" | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Usable Length (LU) | 3/4" |
| Depth of Cut Maximum (APMX) | 3/4" | Corner Radius (RE) | 0.03" |
| Overall Length (OAL) | 4" | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625" |
| Coating | AlTiNX | Series/List # | M525N-CR |
| Flute Count (NOF) | 5 |
