Brand: Starrett

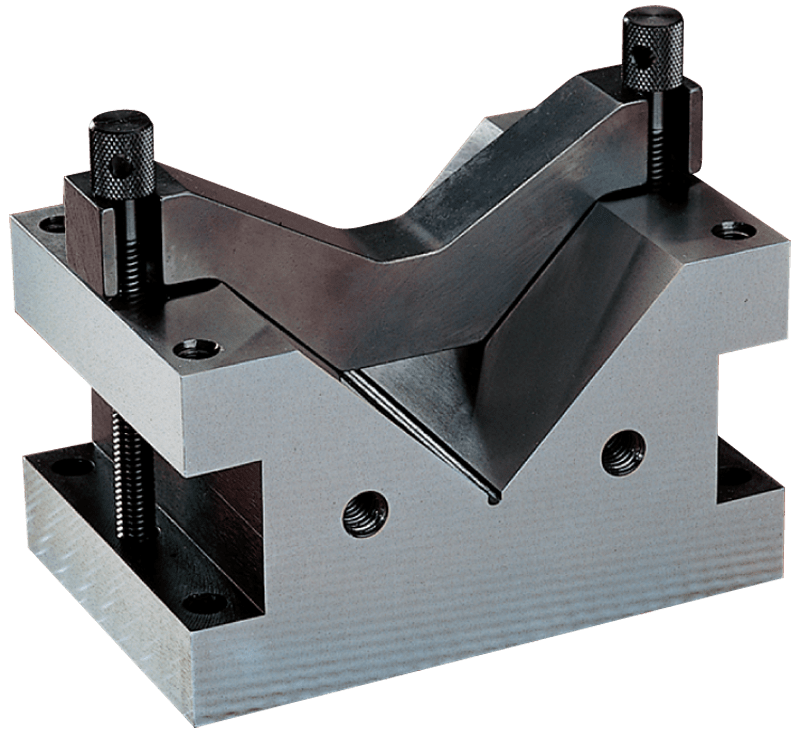

Starrett MV7064960 V-Block & Clamp Set - Model 578A–3" x 5 1/4" x 3 3/8"
SKU: FTS-MV7064960
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Starrett 64960 V-Block & Clamp Set - Model 578A–3" x 5 1/4" x 3 3/8"Full Description
| Type | V-Block & Clamp Set | Includes | V-Block and Clamp |
| Overall Length | 3 3/8" | Model No | 578A |
| Overall Width | 3" | Number of Blocks | 1 |
| Overall Height | 5 1/4" | Capacity | 9/16"-4" |
• This V-block will handle round work up to a diameter of 4 with the same precision and accuracy of other Starrett V-blocks. The block can be used on its side or on its end for machining or inspection, with no interference from the clamp. A reversible swing-away style clamp that clamps against almost any shape of product part is furnished with the unit. The three tapped hole positions in the V-block for the clamp allows the clamp to be positioned at either end or at the center of the V-block. Two tapped holes in one end of the V-block provide for mounting it perpendicular to a face plate. Clearance holes in the bottom provide for mounting the V-block to angle plates or other fixturing. The block is 5–1/4 wide, 3 , high and 3–3/8 long and made of hardened steel that has been precision ground. The clamp is also made from hardened steel. Each V-block is furnished with two clamp screws.
