Brand: Starrett

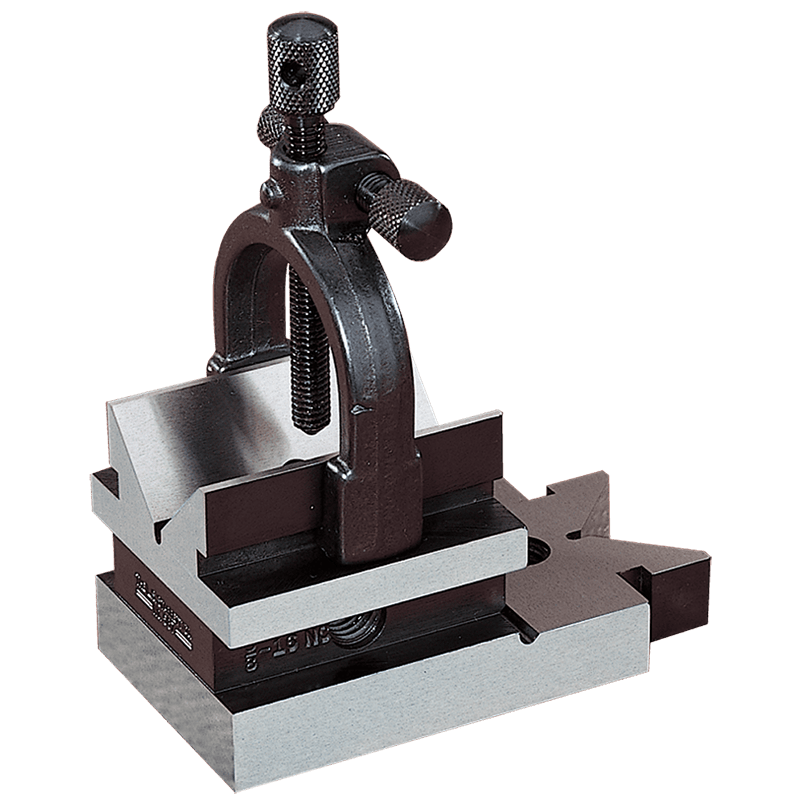

Starrett MV7052588 V-Block & Clamp Set - Model 567–1 7/8" x 1 7/8" x 3"
SKU: FTS-MV7052588
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Starrett 52588 V-Block & Clamp Set - Model 567–1 7/8" x 1 7/8" x 3"Full Description
| Type | V-Block & Clamp Set | Includes | One V Block and One Clamp |
| Overall Length | 3" | Model No | 567 |
| Overall Width | 1 7/8" | Number of Blocks | 1 |
| Overall Height | 1 7/8" |
• Can be used on base, end, and flat on either side as clamp is within outside width of block. Clamp is provided with an adjustable side screw with caps to support block and prevent tilting. Groove at stepped end at right angle to base and is handy for holding shouldered studs, round pins, etc. Hole clearance for drilling and remove dowel pins provided. Block has four 3/8–16 tapped holes, two in base and one on each side to attach angle iron. Angle iron holding block can then be attached to lathe face-plate or held by magnetic chuck. Block made of hardened steel. Sides are ground parallel and the groove central and parallel to sides and base. Size 1–7/8 inches square, base length about 3–1/2 inches.
