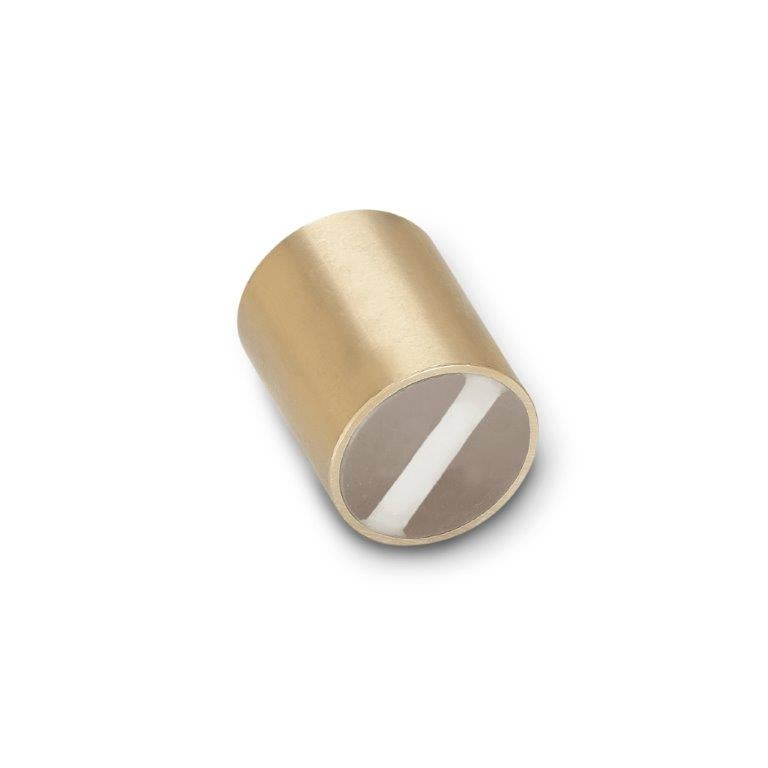

JW WINCO GN54.1-SC-13 RETAINING MAGNET,ROD SHAPED, BRASS TYPE SC

Brand: JW Winco

JW WINCO GN54.1-SC-13 RETAINING MAGNET,ROD SHAPED, BRASS TYPE SC

SKU: JW-54.1-SC-13
MPN: 54.1-SC-13

  • Save $0.25
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

JW WINCO GN54.1-SC-13 RETAINING MAGNET,ROD SHAPED, BRASS TYPE SC
GN 54.1 retaining magnets are a shielded magnetic assembly. The configuration of magnetic and iron poles is known as a sandwich magnet assembly. These retaining magnets provide superior holding power and work well with smaller workpieces. Mounting options include pressing in or gluing in.
SmCo (Samarium, cobalt) Magnet Material, Brass Body with Smooth Finish
GN 54.1 Standard Sheet

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN54.1-SC-13 RETAINING MAGNET,ROD SHAPED, BRASS TYPE SC

GN 54.1 retaining magnets are a shielded magnetic assembly. The configuration of magnetic and iron poles is known as a sandwich magnet assembly. These retaining magnets provide superior holding power and work well with smaller workpieces. Mounting options include pressing in or gluing in.

Magnet Material: SmCo (Samarium, cobalt)

Body: Brass

Finish: Smooth

Temperature Resistant: 392° F

Magnet Dia.: 13 mm

Magnet Height: 20 mm

Nominal Magnetic Force: 60 N

GN 54.1 Standard Sheet
