Brand: Imco

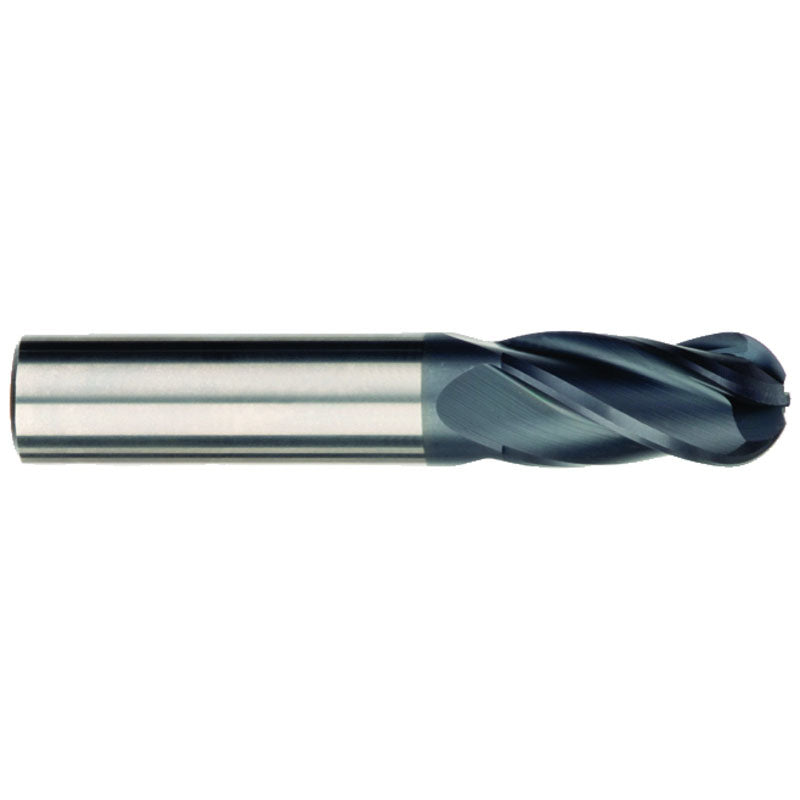

Imco DD4167103 5/16" Dia. - 2-1/2" OAL Ball Nose AlCrN-X-EM - 4 FL
SKU: FTS-DD4167103
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 67103 5/16" x 5/16" x 13/16" x 2-1/2" AlCrNX M924 4F BN RR Pow-R-Feed MillFull Description
| Cutting Diameter (DC) | 5/16" | Usable Length (LU) | 13/16" |
| Connection Diameter Machine Side (DCONMS) | 5/16" | Corner Radius (RE) | 0.156" |
| Overall Length (OAL) | 2-1/2" | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Length Group | Variable Index |
| Coating | AlCrNX | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3125" |
| Shank Type | Round|Flat | Series/List # | M924-BN |
• Excellent for contouring applications in a wide range of materials • Advanced coating and tool design improves tool life exponentially • Unique vibration dampening geometry for chatter-free machining • 38° Helix, Round and Weldon Shank
