Brand: Premier HP

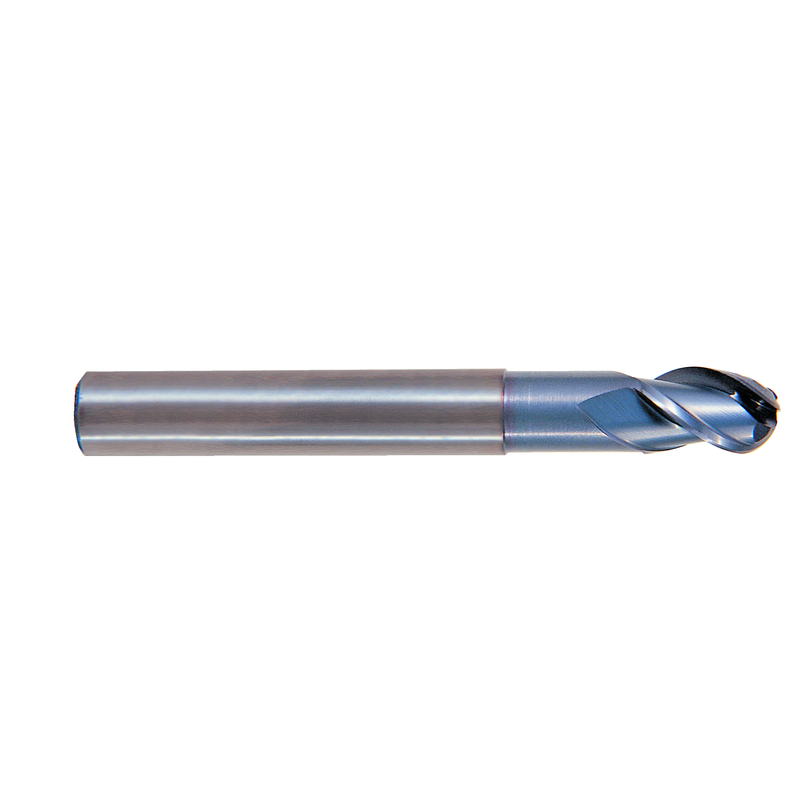

Premier HP DD25EG97502001 5/16" Dia-2-1/2" OAL-TiCN CBD-Ball Nose HP EM-3 FL
SKU: FTS-DD25EG97502001
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Premier HP DD25EG97502001 5/16" Dia-2-1/2" OAL-TiCN CBD-Ball Nose HP EM-3 FLFull Description
| Cutting Diameter (DC) | 5/16" | Applicable Material | Aluminum / Non-Ferrous Materials |
| Connection Diameter Machine Side (DCONMS) | 5/16" | Corner Radius (RE) | 0.156" |
| Overall Length (OAL) | 2-1/2" | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | TiCN | End Shape | Ball Nose |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3125" |
| Usable Length (LU) | 13/16" |
• 3 Flute 45 Helix TiCN Coated End Mill Ball Nose for Aluminum • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • High velocity milling of aluminum, copper and other non-ferrous materials • Maximum stock removal, chip ejection, stability • Increased tool life and higher cutting accuracy
