Brand: M A Ford

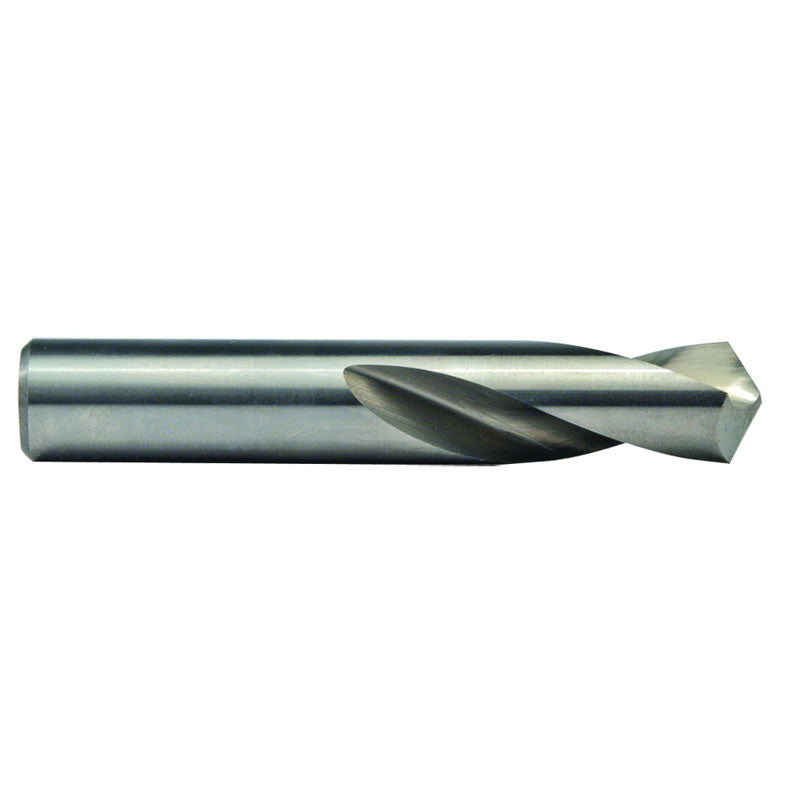

M A Ford AX4340317 5/16" x 2-1/2" OAL 120 Degree Carbide NC Spotting Drill Uncoated

SKU: FTS-AX4340317
MPN: 40331250

$53.13
Unit price per
Save $1.31

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

M A Ford 40331250 5/16" x 2-1/2" OAL 120 Degree Carbide NC Spotting Drill Uncoated

Full Description

Drill Bit Size / Cutting Diameter (DC)	5/16"	Cutting Edge Material	Carbide
Drill Bit Size / Cutting Diameter (DC) - Inch	5/16"	Flute Length	1"
Decimal Equivalent	0.312"	Drill Min. Diameter	0.3125"
Point Angle (SIG)	120 Degrees	Point Diameter (PDD)	5/16"
Angle	120 Degrees	Measurement Type	Fractional
Flute Helix Angle (FHA)	21 Degrees	Cutting Direction (HAND)	Right Hand
Overall Length (OAL)	2-1/2"	Tool Type	NC Spotting Drill
Shank Type	Round	Cutting Length	1"
Coating	Uncoated

Family Description

Alternate Manufacture # 40317

• 3X Diameter drill length • 21° helix • Designed for accurate spotting on NC machines • Solid carbide construction, short lengths and no body clearance make this a very rigid tool • Can be used at high speeds and feeds, compatible with other carbide tooling. • Easy to repoint because there is no web taper
