Brand: Premier HP

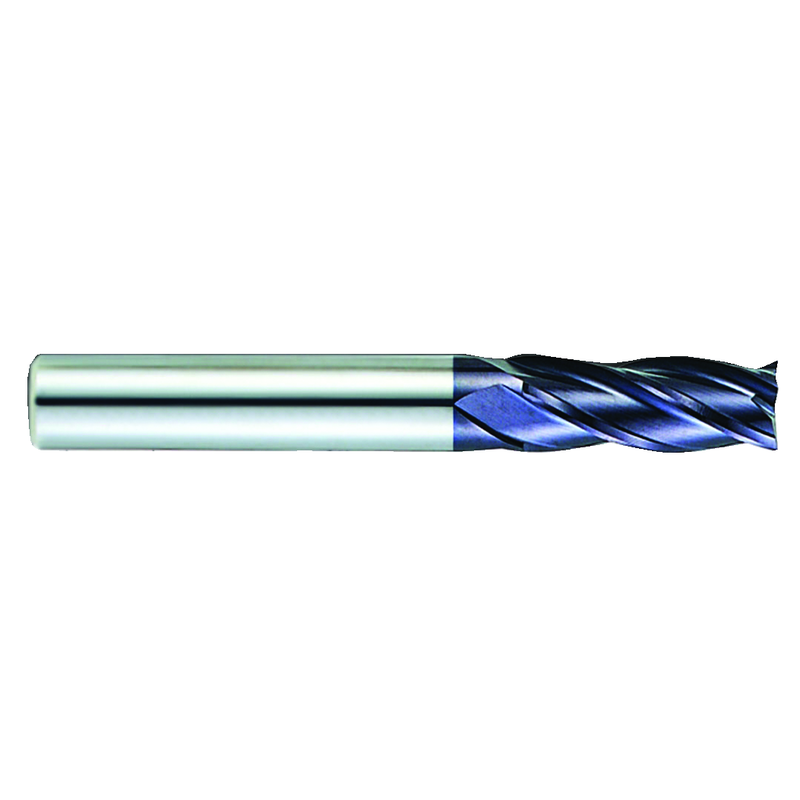

Premier HP DD25EM15302002 5/16 Dia. x 1 LOC x 2-3/4 OAL .020 Radius 4 Flute Carbide S/E HP End Mill-AlTiN

SKU: FTS-DD25EM15302002
MPN: EM15302002

$47.66
Unit price per
Save $1.04

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Premier HP DD25EM15302002 5/16 Dia. x 1 LOC x 2-3/4 OAL .020 Radius 4 Flute Carbide S/E HP End Mill-AlTiN

Full Description

Cutting Diameter (DC)	5/16"	End Shape	Corner Radius
Connection Diameter Machine Side (DCONMS)	5/16"	Usable Length (LU)	1"
Depth of Cut Maximum (APMX)	1"	Corner Radius (RE)	0.02"
Overall Length (OAL)	2-3/4"	Tool Type	Single-End\|High Performance
Cutting Edge Material	Carbide	Length Group	Medium
Coating	AlTiN	Decimal Equivalent	0.3125"
Flute Count (NOF)	4	Corner Radius (RE) / Chamfer Width (CHW)	0.02"
Shank Type	Plain

• AlTiN Coated Carbide End Mills • 4 Flute 30 Corner Radius AlTiN Coated End Mills • HP Carbide End Mills are made of micro-grain carbide, which is processed by special high temperature furnaces • The carbide is pressed at high temperatures • This process allows no porosity after cooling andcreates a tougher, stronger end mill • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • Can be widely used for milling from raw materials to hardened steels • Superior workpiece finishes • Longevity is more than five times as long as non-coated end mill • Through AlTiN coating endurance when dry-milling
