Brand: Morse Cutting Tools

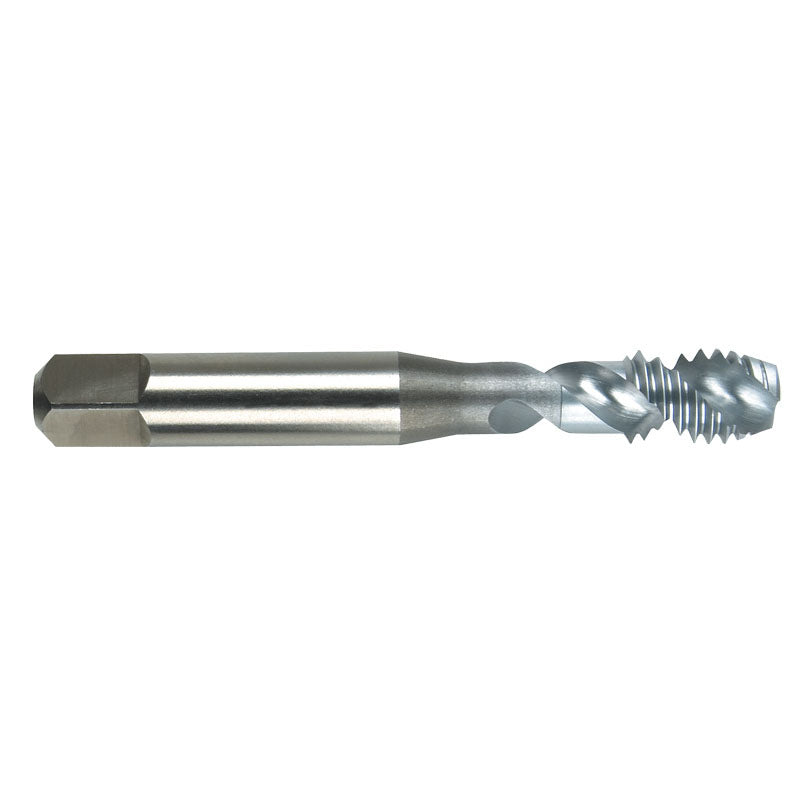

Morse Cutting Tools MT3360787 5/16" - 18 NC 2-Flute, H3 Modified Bottoming Series/List # 2093S Spiral Flute Tap
SKU: FTS-MT3360787
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Morse Cutting Tools 60787 5/16" - 18 NC 2-Flute, H3 Modified Bottoming Series/List # 2093S Spiral Flute TapFull Description
| Thread Diameter Size (TDZ) | 5/16" | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 18 | Special Feature | High Performance |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2-23/32" | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 15/32" | Coating | CrN |
| Flute Count (NOF) | 2 | Flute Type | Spiral-45 Degree |
| Flute Helix Angle (FHA) | 48 Degrees | Style | Modified Bottoming |
| Applicable Material | Aluminum / Non-Ferrous Materials | Measurement Type | Fractional |
| Cutting Edge Material | HSSPM | ToolTypeName | Spiral Flute Taps |
• HPT†- High Performance Tap - Aluminum • Recommended for all types of aluminum alloys. CrN coating especially recommended for high-silicon aluminum alloys. • Spiral Flute Taps are designed to lift the chips out of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge openings, keyways and other interruptions in the tapped hole. • Semi-Interrupted Thread (3-Flute taps only) • Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth. • CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece. • P/M Powder Metallurgy High Speed Steel Premium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity
