Brand: JW Winco

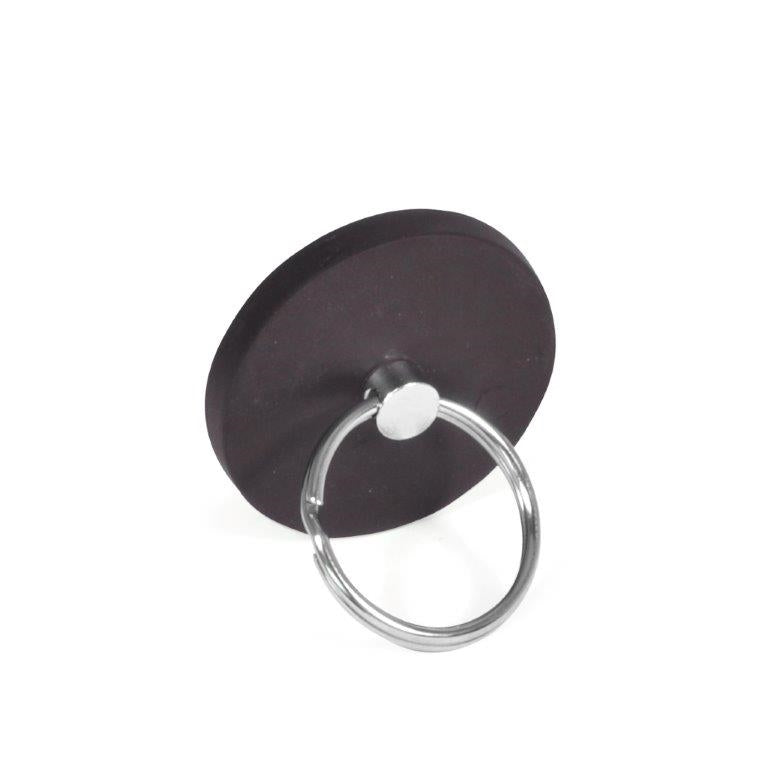

JW WINCO GN51.7-ND-43-B MAGNET W/ KEY RING
SKU: JW-51.7-ND-43-B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN51.7-ND-43-B MAGNET W/ KEY RINGGN 51.7 magnets are a shielded magnetic assembly with arubber jacket. They are especially suitable for applications where the surface is easily marred. Also, these magnets have an increased coefficient of friction, which creates high lateral retaining force.
NdFeB (Neodymium, iron, boron) Magnet Material, Steel Body with Nickel plated Finish
GN 51.7 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN51.7-ND-43-B MAGNET W/ KEY RING
GN 51.7 magnets are a shielded magnetic assembly with arubber jacket. They are especially suitable for applications where the surface is easily marred. Also, these magnets have an increased coefficient of friction, which creates high lateral retaining force.
Magnet Material: NdFeB (Neodymium, iron, boron)
Body: Steel
Finish: Nickel plated
Magnet Cover: Elastomer
Key Ring: Steel, nickel plated
Ball Knob: -
Temperature Resistant: 176° F
Magnet Dia.: 43 mm
Ball Dia.: -
Ring Dia.: 30 mm
Magnet Height: 5.5 mm
Ball Knob Height: -
Key Ring Height: 17 mm
Nominal Magnetic Force: 85 N
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
