Brand: JW Winco

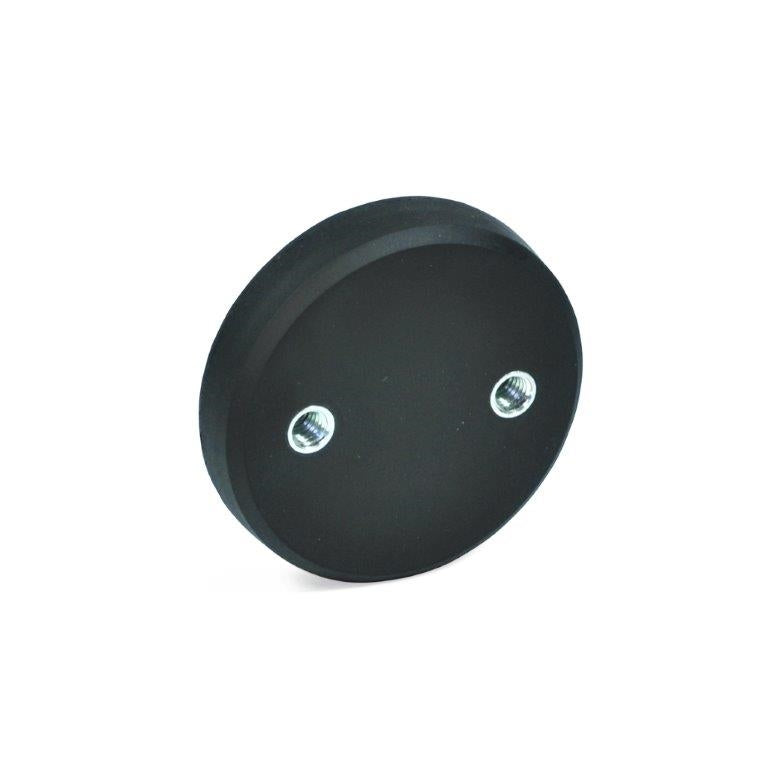

JW WINCO GN51.6-ND-43-27-M5 RETAINING MAGNET W/2 TAPPED THREADS, RUBBER JACKET
SKU: JW-51.6-ND-43-27-M5
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN51.6-ND-43-27-M5 RETAINING MAGNET W/2 TAPPED THREADS, RUBBER JACKETGN 51.6 retaining magnets are a shielded magnetic system with rubber jacket. They are especially suitable for applications where the surface is easily marred. Also, these magnets have an increased coefficient of friction, which creates high lateral retaining force.
NdFeB (Neodymium, iron, boron) Magnet Material, Steel Body with Zinc plated Finish
GN 51.6 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN51.6-ND-43-27-M5 RETAINING MAGNET W/2 TAPPED THREADS, RUBBER JACKET
GN 51.6 retaining magnets are a shielded magnetic system with rubber jacket. They are especially suitable for applications where the surface is easily marred. Also, these magnets have an increased coefficient of friction, which creates high lateral retaining force.
Magnet Material: NdFeB (Neodymium, iron, boron)
Body: Steel
Finish: Zinc plated
Magnet Cover: Elastomer
Temperature Resistant: 176° F
Magnet Dia.: 43 mm
Thread Dia.: M5
Mounting Hole Distance: 27 mm
Magnet Height: 10.3 mm
Nominal Magnetic Force: 85 N
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
