Brand: JW Winco

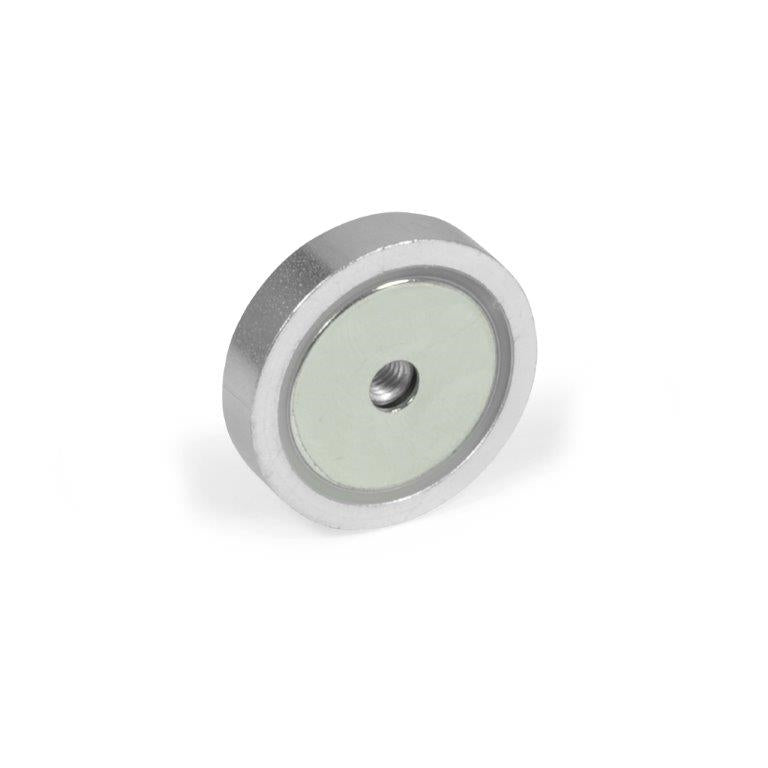

JW WINCO GN50.5-ND-50 RETAINING MAGNET W/ TAPPED THREAD, DISC SHAPE
SKU: JW-50.5-ND-50
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN50.5-ND-50 RETAINING MAGNET W/ TAPPED THREAD, DISC SHAPEGN 50.5 retaining magnets are a shielded magnetic system. For diameter d1 ≥ 50 the magnetic surface is covered with a plastic cap. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material.
NdFeB (Neodymium, iron, boron) Magnet Material, Steel Housing with Zinc plated Finish
GN 50.5 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN50.5-ND-50 RETAINING MAGNET W/ TAPPED THREAD, DISC SHAPE
GN 50.5 retaining magnets are a shielded magnetic system. For diameter d1 ‰¥ 50 the magnetic surface is covered with a plastic cap. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material.
Magnet Material: NdFeB (Neodymium, iron, boron)
Housing: Steel
Finish: Zinc plated
Magnet Cover: Plastic
Temperature Resistant: 176° F
Magnet Dia.: 50 mm
Thread Dia.: M8
Magnet Height: 10 mm
Nominal Magnetic Force: 800 N
