Brand: Jergens Manufacturing

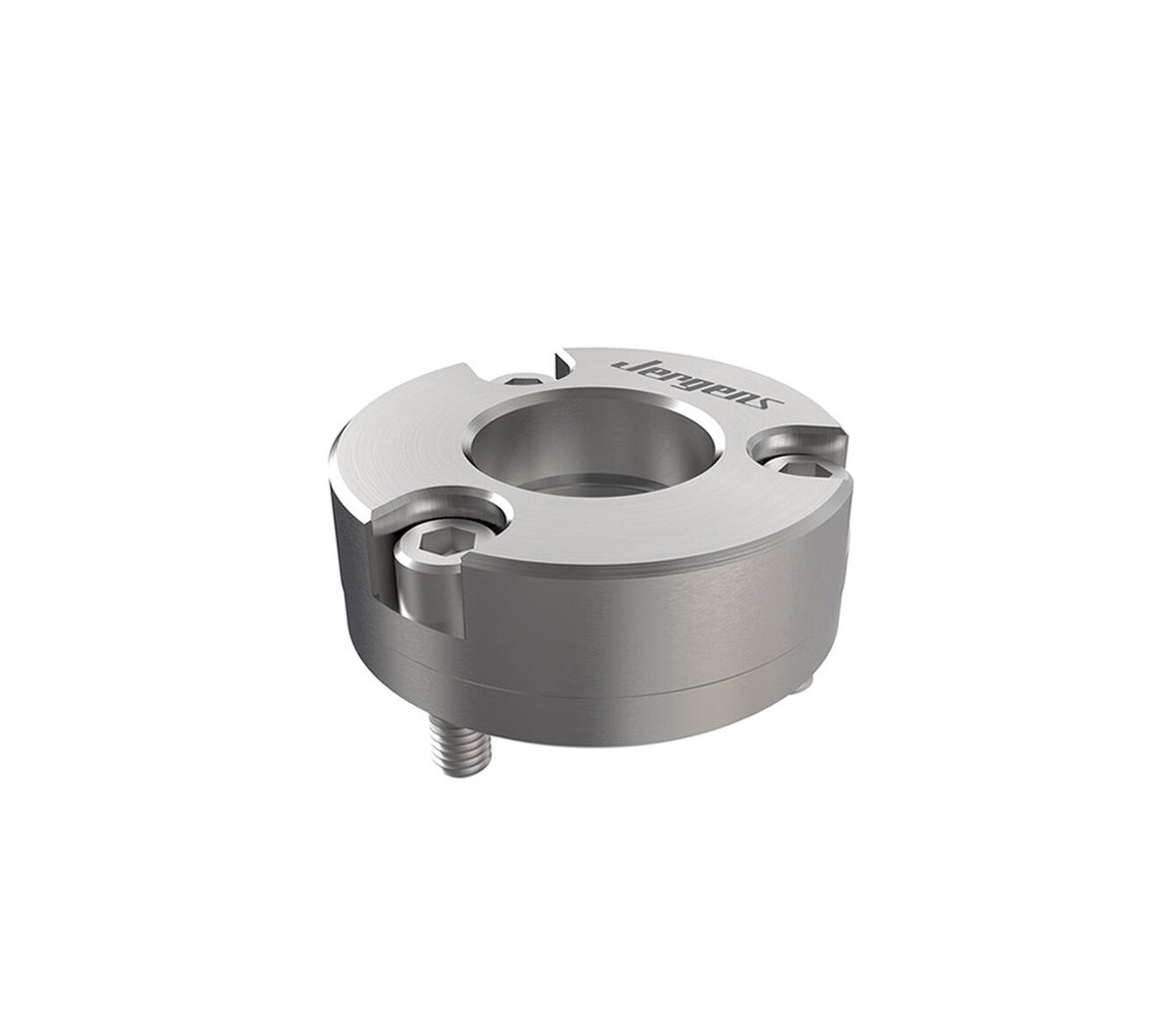

JERGENS RECEIVER BUSHING, 13MM FACE MT, SS, BALL LOCK, SMBLB-13-RC - 49556SS
SKU: JG-49556SS
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS RECEIVER BUSHING, 13MM FACE MT, SS, BALL LOCK, SMBLB-13-RC - 49556SSCategory: Face Mount METRIC Stainless Receiver Bushings
Product Code: F111-2
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS RECEIVER BUSHING, 13MM FACE MT, SS, BALL LOCK, SMBLB-13-RC - 49556SS
Category: Face Mount METRIC Stainless Receiver Bushings
Product Code: F111-2
Category: 4798
Product Code: 111565

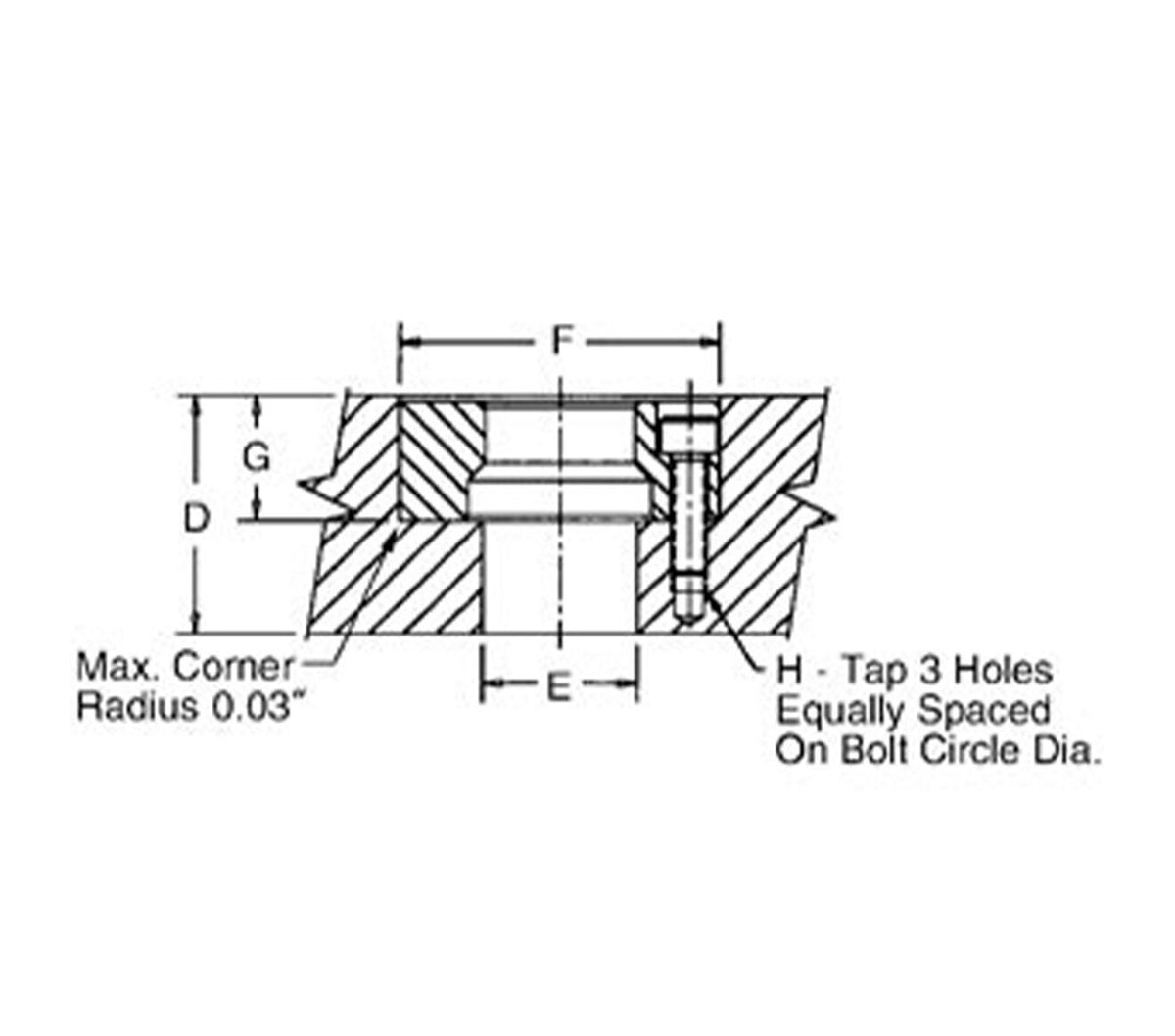

| Part Number | Description | Description_0 | Shank Diameter (mm) | Actual O.D. +.01,-.02 | Clearance Drill Diameter E | Bore +.010, +.003 F | Depth +.025, -.025 G | Tap Size & Depth H | Bolt Circle Diameter 3 PL Equally Spaced | Min. Subplate Thickness D |
|---|---|---|---|---|---|---|---|---|---|---|
| 49556SS | Face Mount METRIC Stainless Receiver Bushings | SMBLB-13-RC | 13 | 35.00 | 13.5 | 35.000 | 11.910 | M4x.07 x 7 | 25 | 20 |
*All Jergens orders must meet a $75 minimum*
