Brand: Jergens Manufacturing

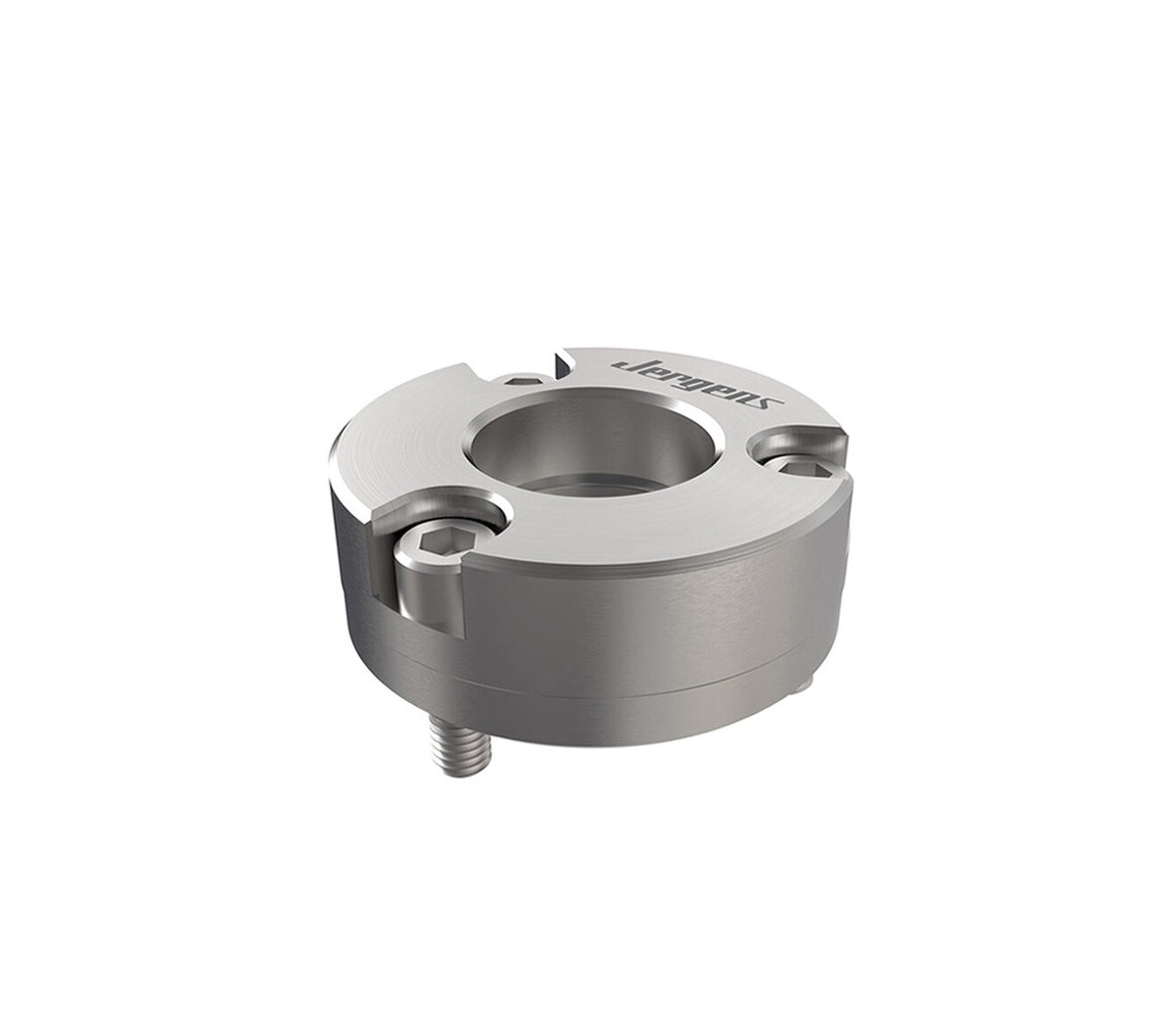

JERGENS RECEIVER BUSHING, 25MM FACE MT, SS, BALL LOCK, SBLB-25-RC - 49502SS
SKU: JG-49502SS
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS RECEIVER BUSHING, 25MM FACE MT, SS, BALL LOCK, SBLB-25-RC - 49502SSCategory: Stainless Ball Lock® Receiver Bushings Face Mount
Product Code: F111-2
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS RECEIVER BUSHING, 25MM FACE MT, SS, BALL LOCK, SBLB-25-RC - 49502SS
Category: Stainless Ball Lock® Receiver Bushings Face Mount
Product Code: F111-2
Category: 4798
Product Code: 111565

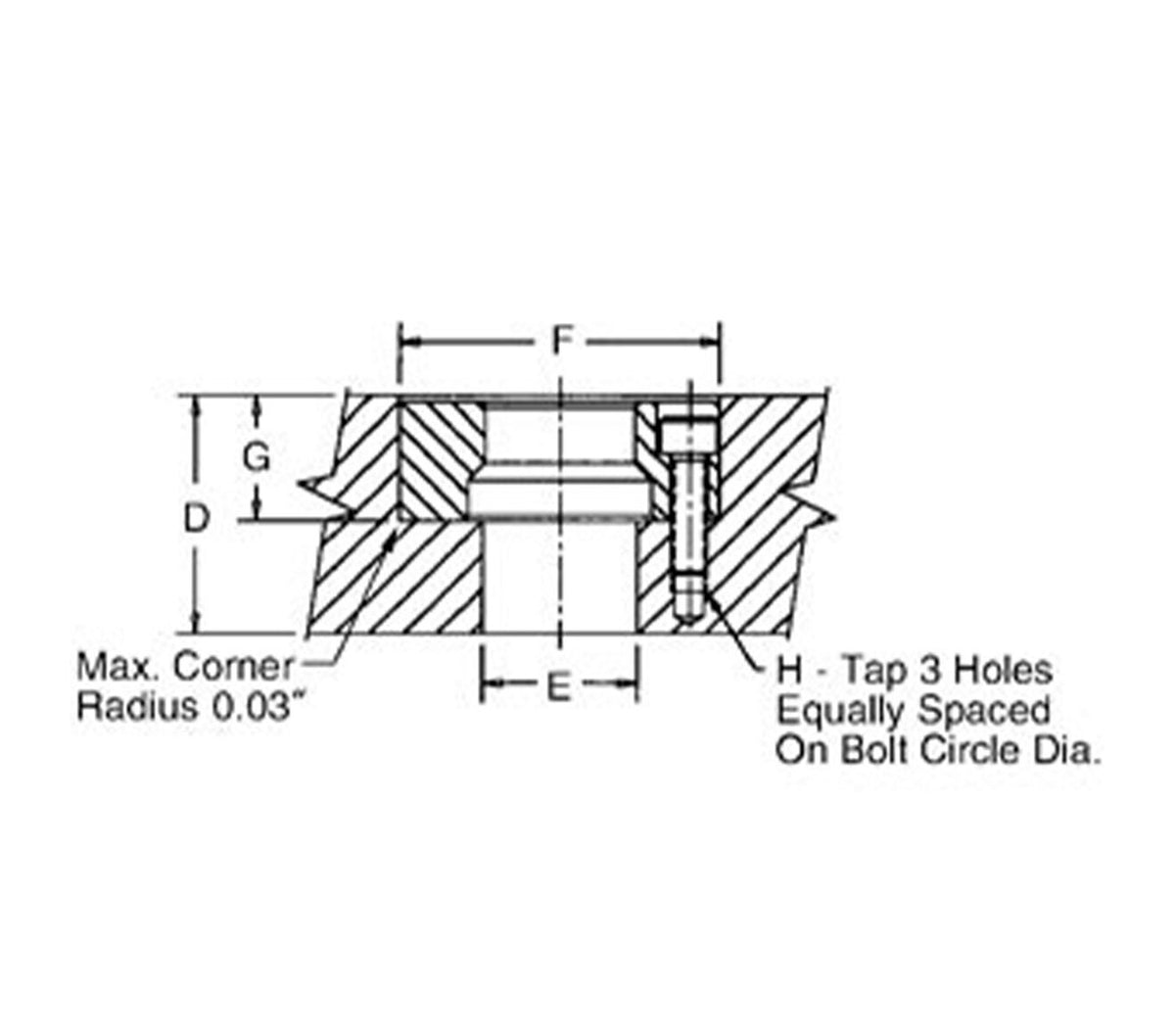

| Part Number | Description | Shank Diameter (mm) | Actual O.D. +.0000 -0.0004 | Clearance Drill Diameter E | Bore +.0005, -.0000 F | Depth +.002, -.000 G | Tap Size & Depth H | Bolt Circle Diameter 3 PL Equally Spaced | Min. Subplate Thickness D |
|---|---|---|---|---|---|---|---|---|---|
| 49502SS | Stainless Ball Locku00ae Receiver Bushings Face Mount | 25 | 2.0623 | 1 | 2.0623 | 0.799 | 1/4-28x1/2 | 1.644 | 1 1/4 |
*All Jergens orders must meet a $75 minimum*
