Brand: M A Ford

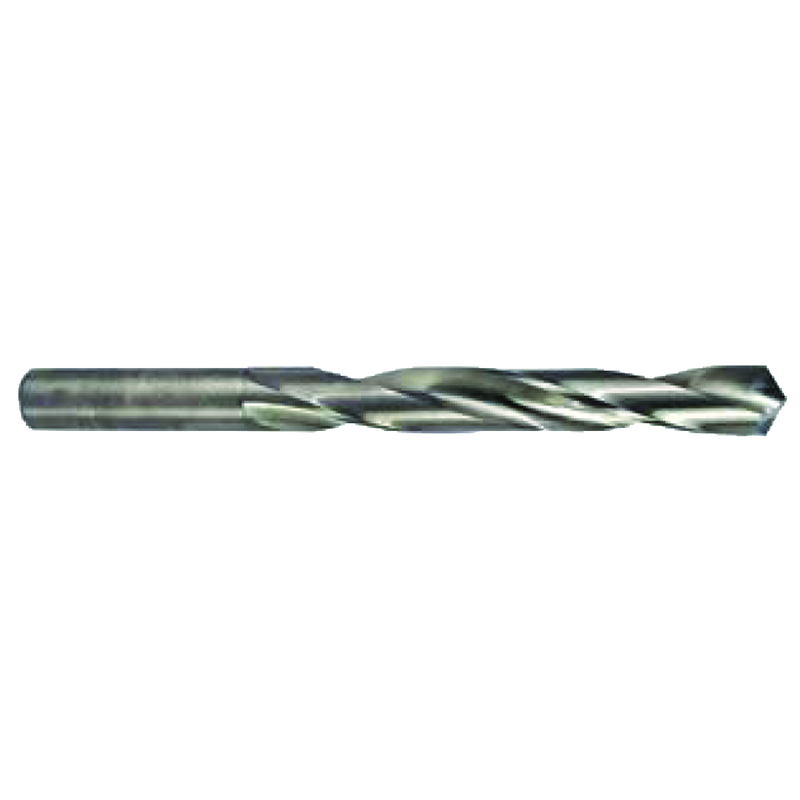

M A Ford AX4124023 0.45 mm Dia. x 0.45 mm Shank x 5 mm Flute Length x 26 mm OAL, 5xD, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
SKU: FTS-AX4124023
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
M A Ford 22401770 0.45 mm Dia. x 0.45 mm Shank x 5 mm Flute Length x 26 mm OAL, 5xD, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 0.45 mm | Shank Type | Round |
| Decimal Equivalent | 0.0177" | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.45 mm | Tool Type | Jobber Drill |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | Uncoated | Usable Length (LU) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 0.45 mm | Length Chip Flute (LCF) | 5 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 26 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 21 Degrees |
Family Description
Alternate Manufacture # 24023
• Solid Carbide Stub Length Drill • 3X Drill Length • 118 degree point angle • 21 degree helix • designed to allow high feed rates with good chip flow. • Four facet drill point minimizes drill wander and assures accurately sized holes. • Shorter length reduces deflection and vibration, increases drill accuracy and improved tool life.
