Brand: Iscar

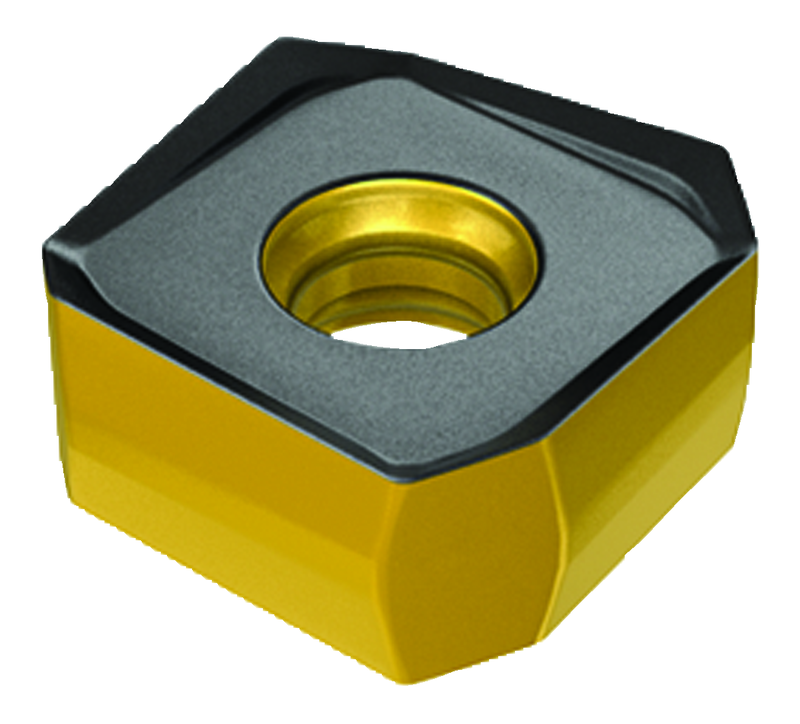

Iscar EH5605348 S845 SXCU 160608AD-RMM IC830
SKU: FTS-EH5605348
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5605348 S845 SXCU 160608AD-RMM IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 90° Square |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0138 "/tooth |
| Corner Radius (RE) | 0.0315" | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.281" | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.638" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.293" | Minimum Feed per Tooth (fz(min)) | 0.0079 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Family Description
HELIDO, square, thick inserts with 8 helical right-hand cutting edges, providing a very economical 45° milling solution.
When a wiper insert is being used, recommended ap=.0315-.118 inch, fz=.0039-.0098 inch/t.
