Brand: JW Winco

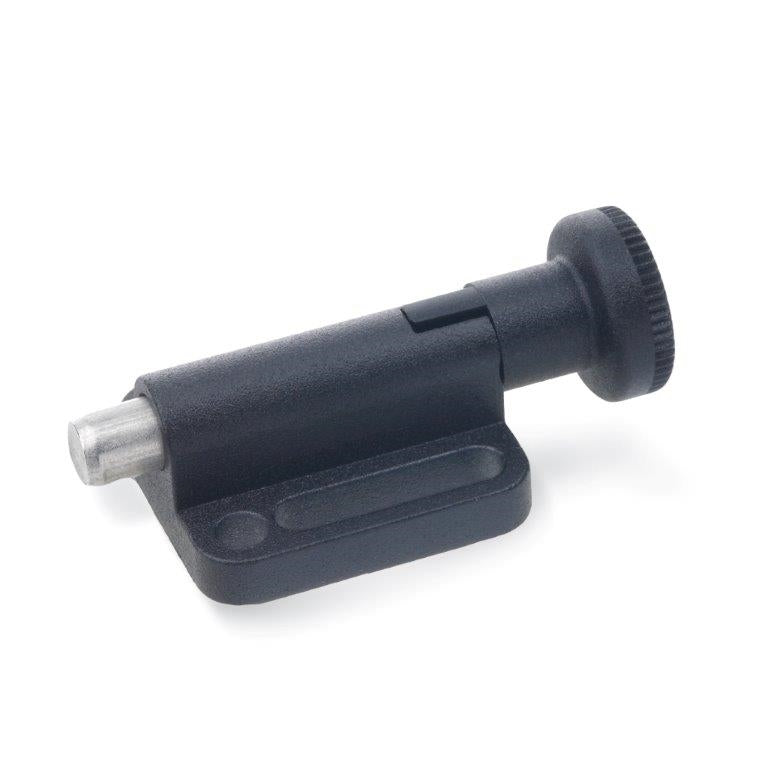

JW WINCO GN417-6-C INDEXING PLUNGER WITH REST - 417-6-C
SKU: JW-417-6-C
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN417-6-C INDEXING PLUNGER WITH REST - 417-6-CThese "Type C" GN 417 indexing plunger latch mechanisms are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Plastic Pull Knob
Stainless Steel Plunger Pin With locking nose
GN417 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN417-6-C INDEXING PLUNGER WITH REST - 417-6-C
These "Type C" GN 417 indexing plunger latch mechanisms are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Knob Type: Pull Knob
Knob Material: Plastic
Housing Material: Plastic
Plunger Pin: Stainless Steel, With locking nose
Plunger Dia.: 6 mm
Knob Dia.: 18 mm
Ring Dia.: -
Plunger Length: 6 mm
Overall Length: 52 mm
Plate Length: 30.5 mm
Plate Width: 32 mm
Initial Load: 5 N
End Load: 21 N
