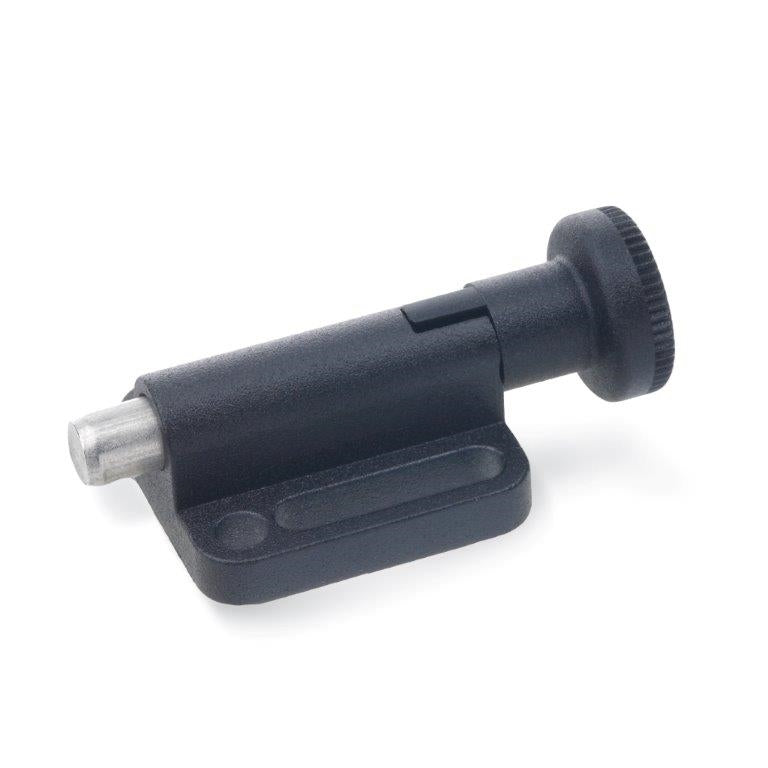

JW WINCO GN417-4-C INDEXING PLUNGER WITH REST - 417-4-C

Brand: JW Winco

JW WINCO GN417-4-C INDEXING PLUNGER WITH REST - 417-4-C

SKU: JW-417-4-C
MPN: 417-4-C

  • $8.25
    Unit price per
  • Save $0.05
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

JW WINCO GN417-4-C INDEXING PLUNGER WITH REST - 417-4-C
These "Type C" GN 417 indexing plunger latch mechanisms are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Plastic Pull Knob
Stainless Steel Plunger Pin With locking nose
GN417 Standard Sheet

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN417-4-C INDEXING PLUNGER WITH REST - 417-4-C

These "Type C" GN 417 indexing plunger latch mechanisms are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Knob Type: Pull Knob

Knob Material: Plastic

Housing Material: Plastic

Plunger Pin: Stainless Steel, With locking nose

Plunger Dia.: 4 mm

Knob Dia.: 12 mm

Ring Dia.: -

Plunger Length: 4 mm

Overall Length: 33 mm

Plate Length: 19 mm

Plate Width: 22 mm

Initial Load: 3 N

End Load: 12 N

GN417 Standard Sheet

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
