Brand: Reiff & Nestor

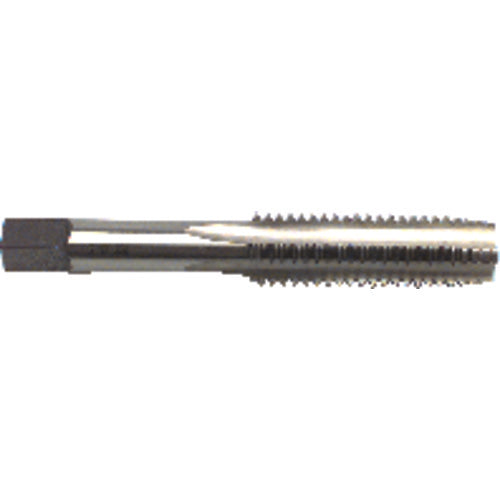

Reiff & Nestor EP4021382 4-40 3FL H-11 O/S (+.005) PLUG TAPS 115A
SKU: FTS-EP4021382
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Reiff & Nestor 21382 4-40 3FL H-11 O/S (+.005) PLUG TAPS 115AFull Description
| Thread Diameter Size (TDZ) | #4 | Coating | BRIGHT |
| Threads per Inch (TPI) | 40 | Drive Size (DRVS) | 0.11" |
| Thread Standard | NC | Flute Type | Straight Flute |
| Overall Length (OAL) | 1-7/8" | End Shape | Square |
| Thread Cutting Part Length (THL) | 9/16" | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.11" | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Square Size | 9/16" x 0.110" |
| Flute Helix Angle (FHA) | 0 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS | Standard Pack Size | 12 |
| Thread Tolerance Class (TCTR) | H11 | Series/List # | 115A |
| Tool Type | 0.005" Oversize Tap | Thread Size | #4 - 40 |
| Chamfer | PLUG |
• Oversized Plug Style Hand Taps • High Speed Steel • H6 Tolerance .0025 • H7 Tolerance .0030 • H11 Tolerance .005
