Brand: Royal Products

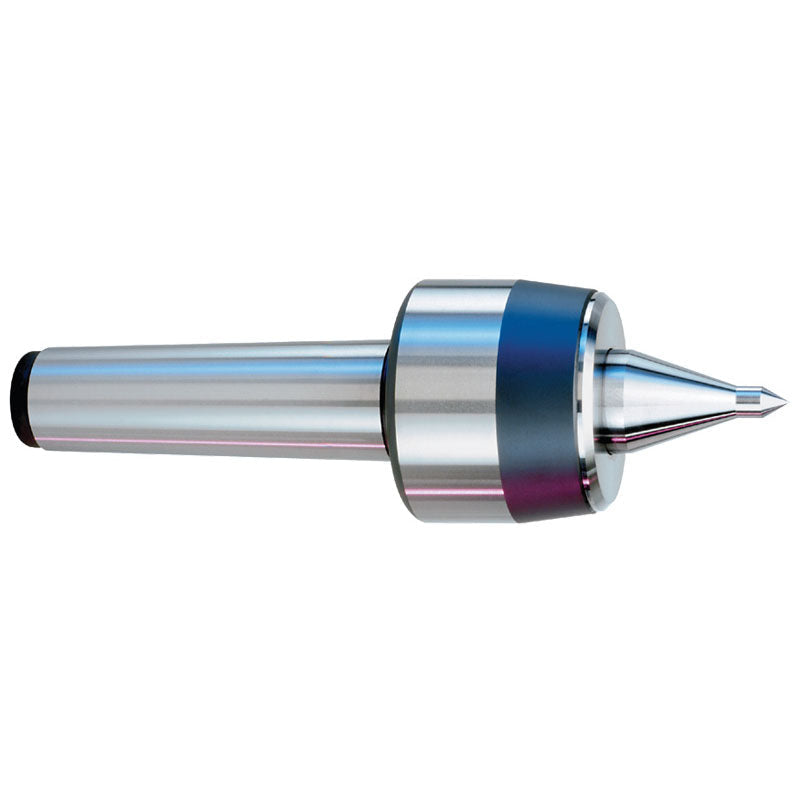

Royal Products HK2610213 Live Centers - #3 MT Spindle Type CNC
SKU: FTS-HK2610213
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Royal Products 10213 Live Centers - #3 MT Spindle Type CNCFull Description
| Type | Live Center | Accuracy | 0.0001" |
| Taper Type | Morse Taper | Model No | 10213 |
| Point Style | CNC | Head Length | 1 3/4" |
| Head Diameter | 2 3/8" | Point Length | 1 7/8" |
| Maximum RPM | 5,000 | Tip Diameter | 3/8" |
| Mount | 3 MT | Style | Spindle |
| Point Diameter | 1" | Radial Load | 740 lbs |
| Thrust Load | 3,900 lbs |
• An excellent heavy-duty live center designed to handle most turning applications. • 0.00005" TIR guaranteed. • Heavy-duty precision bearings provide exceptional thrust and radial load capacities. • The substantial point extends into the shank where it is supported by a large needle bearing for increased strength and rigidity. • Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. • Body and point are hardened for strength and durability. • On the CNC model, the extended point provides great tool clearance.
