Brand: Morse Cutting Tools

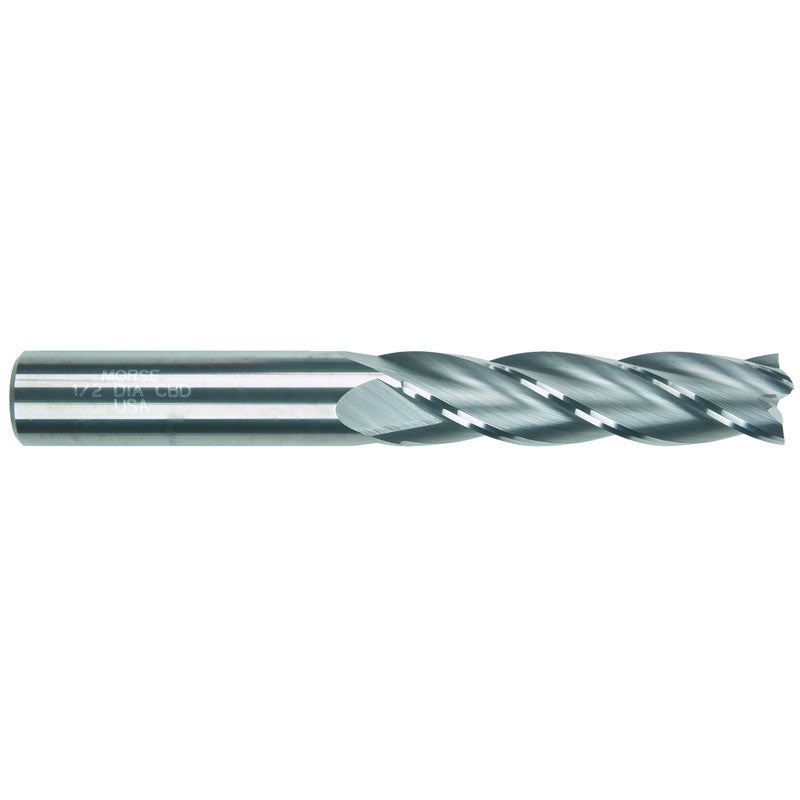

Morse Cutting Tools MT3290722 3/8" x 3/8" x 7/8" x 2 1/2" 4 Flute Single End Carbide Finishing Center Cutting End Mill-TiN Series/List #5943G
SKU: FTS-MT3290722
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Morse Cutting Tools 90722 3/8" x 3/8" x 7/8" x 2 1/2" 4 Flute Single End Carbide Finishing Center Cutting End Mill-TiN Series/List #5943GFull Description
| Cutting Diameter (DC) | 3/8" | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8" | Usable Length (LU) | 7/8" |
| Depth of Cut Maximum (APMX) | 7/8" | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2" | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375" |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Plain | Series/List # | 5943G |
• Solid Carbide 4-Flute Single End Mills • TiN Coated Regular Length
