Brand: Imco

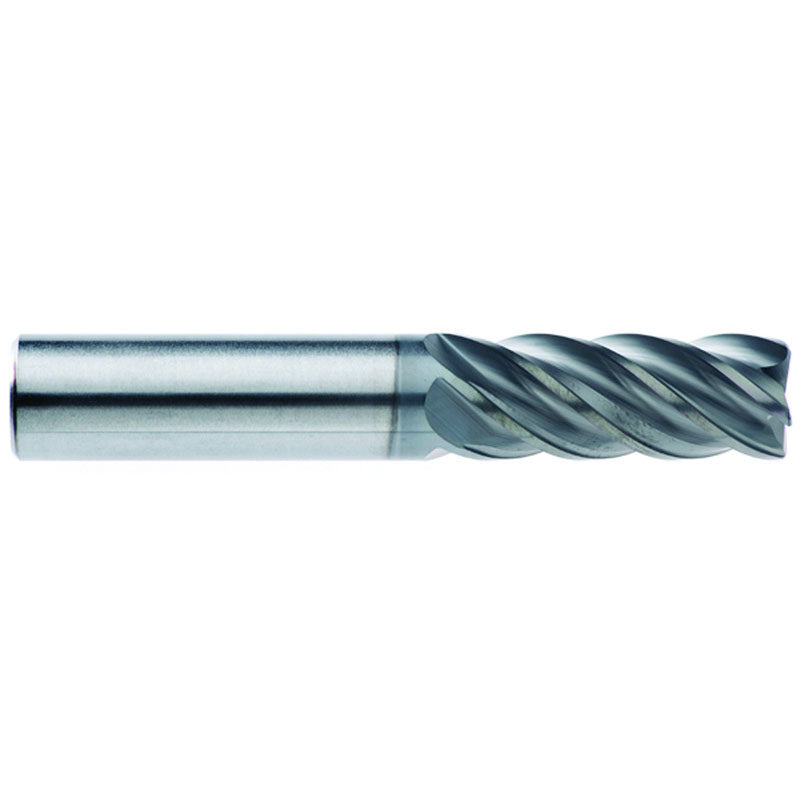

Imco DD4065142 3/8" x 3/8" x 1-1/4" x 3" AlCrNX M525 5F .015R LL enDURO Mill
SKU: FTS-DD4065142
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 65142 3/8" x 3/8" x 1-1/4" x 3" AlCrNX M525 5F .015R LL enDURO MillFull Description
| Cutting Diameter (DC) | 3/8" | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 3/8" | Usable Length (LU) | 1-1/4" |
| Depth of Cut Maximum (APMX) | 1-1/4" | Corner Radius (RE) | 0.015" |
| Overall Length (OAL) | 3" | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlCrNX | Decimal Equivalent | 0.375" |
| Flute Count (NOF) | 5 | Series/List # | M525-CR |
| Flute Helix Angle (FHA) | Variable Index | Package Height | 1.00000 |
• Advanced cutting geometries • High strength corner radii • IMCO's proprietary heat resistant coating • h6 Shank tolerance for shrink fit holders
