Brand: Iscar

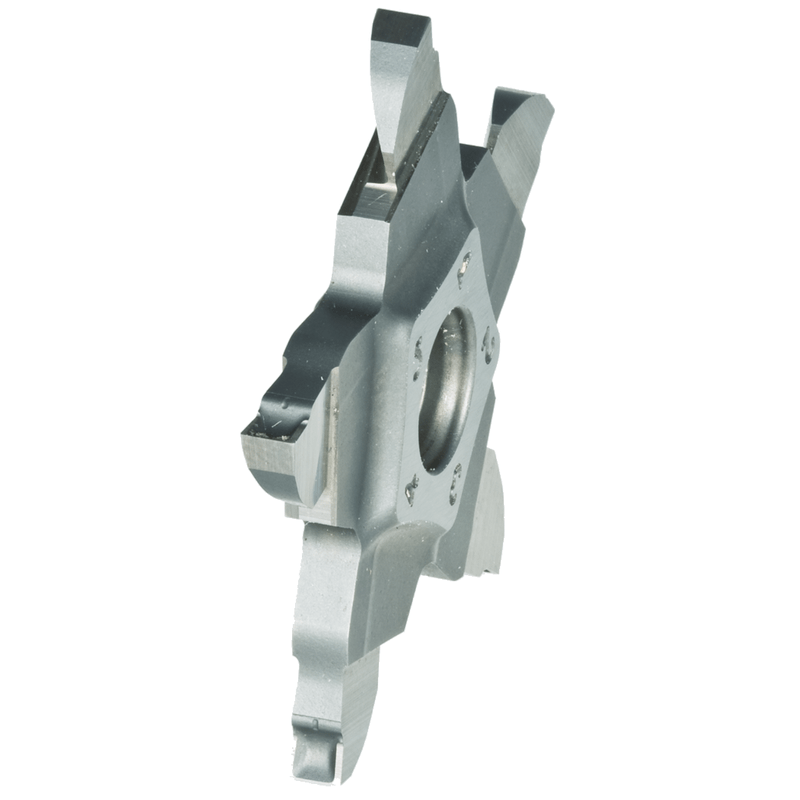

Iscar EH6003627 PENTA 34F239-0.15-22L IC908
SKU: FTS-EH6003627
MPN:
Stock: 0
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6003627 PENTA 34F239-0.15-22L IC908Full Description
| Cutting Width (CW) | 0.094" | Tool Type | Face Turn-Groove Inserts |
| Corner Radius (RE) | 0.0059" | Axial Groove Outside Diameter Minimum (DAXN) | 0.87" |
| Cutting Depth Maximum (CDX) | 0.197" | Max. Face Grooving Feed (ffg(max)) | 0.0047 "/rev |
| Shape | 108° Pentagonal | Min. Face Grooving Feed (ffg(min)) | 0.0031 "/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Measurement Type | Inch |
| Grade | IC908 | Coating | TiAlN |
| Application | | Face Grooving | | Body Material | Carbide |
Family Description
Pentagonal inserts for face grooving and recessing up to .197" depth of cut at a minimum .866" diameter.
For parting and grooving range, click on "More Info".
