Brand: ETM

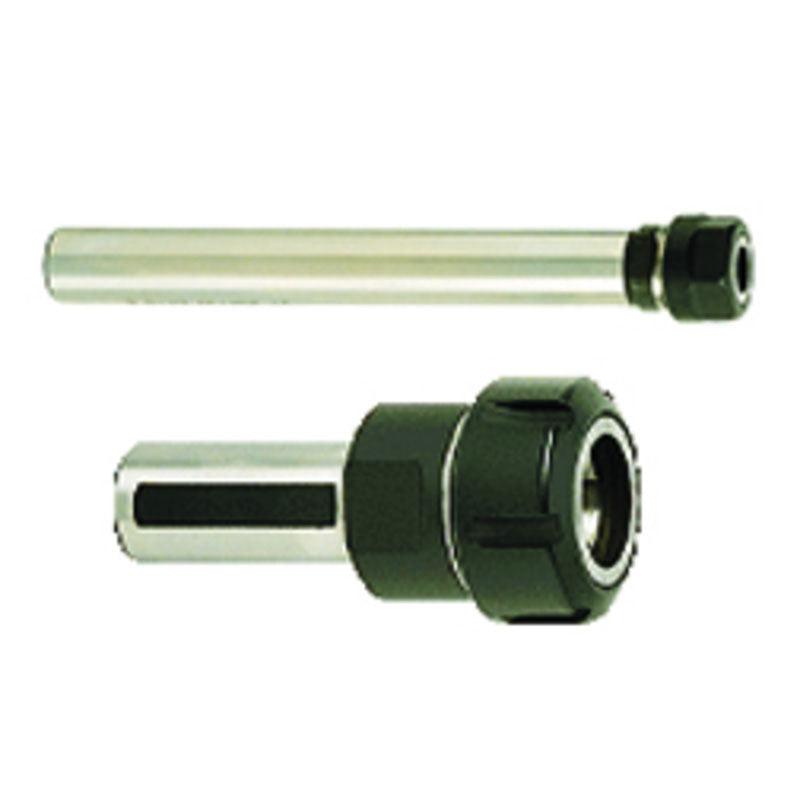

ETM GM70690093 ST3/4X2.500 ER11 F
SKU: FTS-GM70690093
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 4509099 ST3/4X2.500 ER11 FFull Description
| Shank Size (SS) | 3/4 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022" |
| Body Diameter (BD) | 0.748" | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.278" |
| Protruding Length (LPR) | 0.734" | Figure | 1 |
| Shank Length (LS) | 2-1/2" | Measurement Type | Inch |
| Tool Type | Cylindrical Shanks | Drive Size (DRVS) | 0.669" |
| Style | ER11 | Body Material | Steel |
Family Description
DIN 6499 ER collet chucks with straight shanks.
F suffix indicates a flat on the shank.
