Brand: Imco

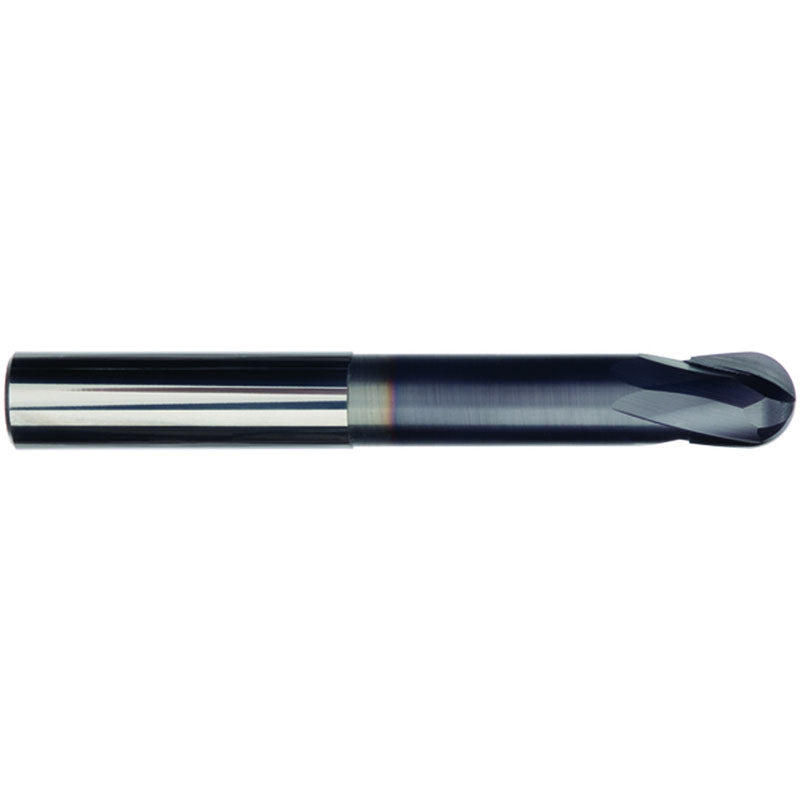

Imco DD4034289 3/16" Dia. x 1/4" Shank x 3/16" DOC x 3" OAL, Carbide TiAlNX, 2 Flute, Ballnose End Mill
SKU: FTS-DD4034289
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 34289 3/16" Dia. x 1/4" Shank x 3/16" DOC x 3" OAL, Carbide TiAlNX, 2 Flute, Ballnose End MillFull Description
| Cutting Diameter (DC) | 3/16" | Corner Radius (RE) | 0.093" |
| Connection Diameter Machine Side (DCONMS) | 1/4" | Neck Diameter (DN) | 0.176" |
| Depth of Cut Maximum (APMX) | 3/16" | Neck Length (LN) | 9/16" |
| Overall Length (OAL) | 3" | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Length Group | Neck Relief |
| Coating | TiAlNX | Decimal Equivalent | 0.1875" |
| Flute Count (NOF) | 2 | Series/List # | E520N-BN |
| Usable Length (LU) | 3/16" |
• Solid carbide die mold mill • TiAlN-X, standard length series 1520 • For high performance machining of dies and molds in hardened materials at high speeds. Wet or dry machining
