Brand: Imco

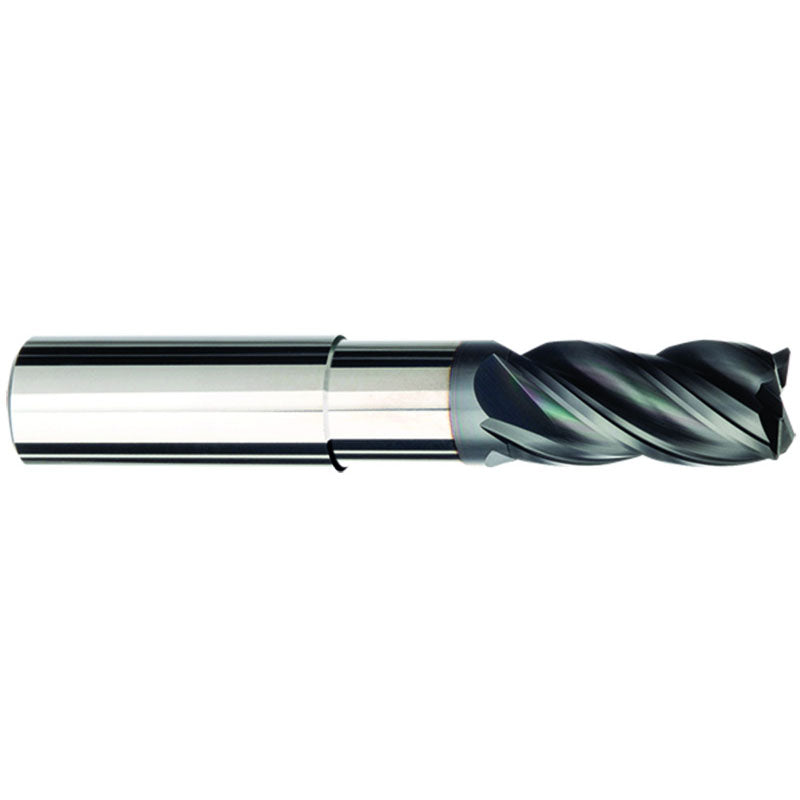

Imco DD4167733 3/16" x 3/16" x 3/8" x 3" LBS=1-3/8 AlCrNX M924N 4F .015R SX Pow-R-Feed Mill
SKU: FTS-DD4167733
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 67733 3/16" x 3/16" x 3/8" x 3" LBS=1-3/8 AlCrNX M924N 4F .015R SX Pow-R-Feed MillFull Description
| Cutting Diameter (DC) | 3/16" | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16" | Usable Length (LU) | 3/8" |
| Depth of Cut Maximum (APMX) | 3/8" | Corner Radius (RE) | 0.015" |
| Overall Length (OAL) | 3" | Neck Length (LN) | 1-3/8" |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlCrNX | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1875" |
| Flute Helix Angle (FHA) | Variable Index | Series/List # | M924N-CR |
| Shank Type | W/Flat |
• Go deeper per pass in cavities with special flute length and no loss in tool rigidity • Neck relieved for machining in cavities and against tight walls • Advanced coating and tool design improves tool life exponentially • Unique vibration dampening geometry for chatter-free machining • Round shank • 38° Helix
