Brand: Premier HP

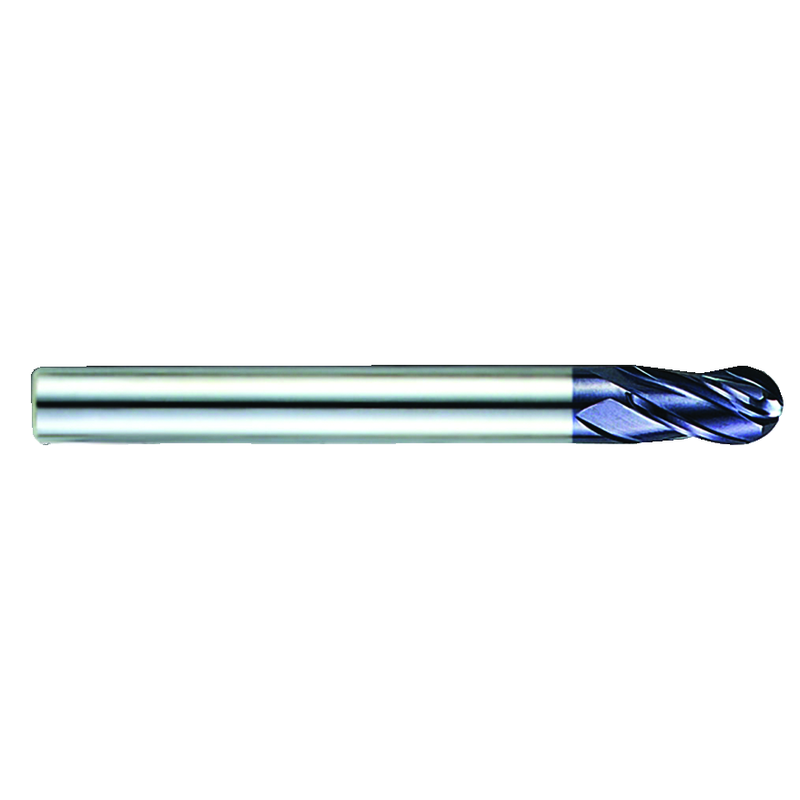

Premier HP DD25LB304012 3/16" Dia. - 3-1/8" OAL - AlTiN CBD-Ball Nose HP End Mill-4 FL

SKU: FTS-DD25LB304012
MPN: EM21001201

$44.58
Unit price per
Save $0.96

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Premier HP DD25LB304012 3/16" Dia. x 3/16" Shank x 3/16" DOC x 3-1/8" OAL, Carbide AlTiN, 4 Flute, Round, Ballnose End Mill

Full Description

Cutting Diameter (DC)	3/16"	Usable Length (LU)	3/16"
Connection Diameter Machine Side (DCONMS)	3/16"	Corner Radius (RE)	0.093"
Depth of Cut Maximum (APMX)	3/16"	Neck Diameter (DN)	None
Overall Length (OAL)	3-1/8"	Neck Length (LN)	None
Cutting Edge Material	Carbide	Tool Type	High Performance
Coating	AlTiN	Length Group	Reduced Neck
Flute Count (NOF)	4	End Shape	Ball Nose
Shank Type	Round	Decimal Equivalent	0.1875"

• AlTiN Coated Carbide Ball End Mills • Carbide 4 Flute 30 Helix Long Reach Ball End Mills with AlTiN Coating • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • Radius Tolerance: .001" • Can be widely used for milling from raw materials, pre-hardened steels, and to hardened steels • Deep slotting milling is possible by reduced neck • For copy-milling machines • Longevity is more than five times as long as non-coated end mill • Through AlTiN coating endurance when dry-milling
