Brand: M A Ford

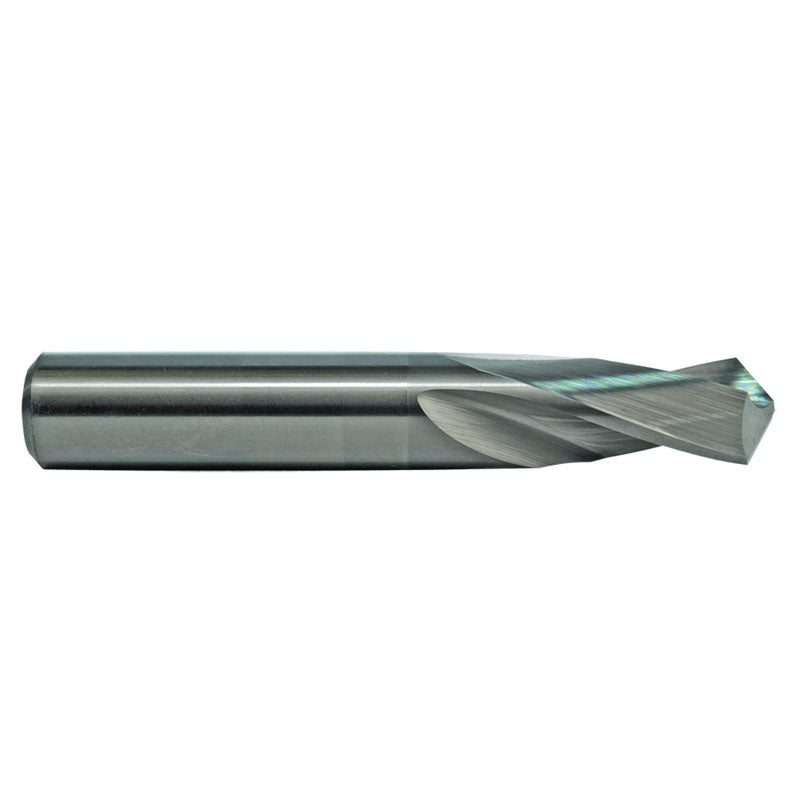

M A Ford AX3926298 3/16 Dia. - 2-3/16 OAL-Surface Treated - CBD-Stub Lgth Drill
SKU: FTS-AX3926298
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
M A Ford 20618750 3/16" Dia. x 3/16" Shank x 3/4" Flute Length x 2-3/16" OAL, 3XD, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 3/16" | Shape | Screw Machine |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16" | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1875" | Tool Type | Screw Machine |
| Length Group | 3XD | Point Shape | Point |
| Coating | Uncoated | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/16" | Usable Length (LU) | 3/4" |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 3/4" |
| Point Angle (SIG) | 118 Degrees | Overall Length (OAL) | 2-3/16" |
| Flute Helix Angle (FHA) | 21 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round |
Family Description
Alternate Manufacture # 26298
• Solid Carbide Stub Length Drills • 118° Point 21° Helix Series 215 • Designed for drilling cast iron,aluminum, bronze and magnesium • An extremely efficient and -economical carbide drill • Shorter overhang reduces -deflectionand vibration, increases drill -accuracyand improves tool life • Micrograin 10% cobalt grade
