Brand: JW Winco

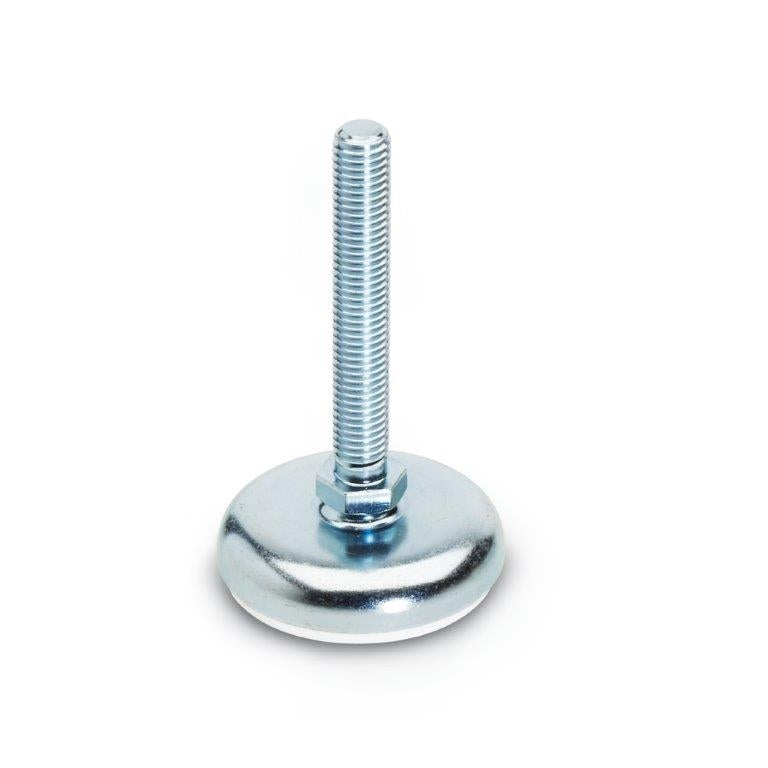

JW WINCO GN30-50-M8-50-A2-S LEVELING FEET

SKU: JW-30-50-M8-50-A2-S
MPN: 30-50-M8-50-A2-S

  • $15.60
    Unit price per
  • Save $0.28
Shipping calculated at checkout.

Stock: 0

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**


Short Description

JW WINCO GN30-50-M8-50-A2-S LEVELING FEET
GN 30 Leveling feet are securely mounted and are not removable, the solid rubber pad is firmly embedded in the sheet metal base and secured by a screw loctited into place. The threaded stud can be either adjusted via an internal hexagon at the top or a wrench flats at the lower end.
Steel Body Material with Zinc Plated Surface Finish.
Santoprene (white pad) Rubber Pad with Metric Thread Type
GN 30 Standard Sheet


Full Description

JW WINCO GN30-50-M8-50-A2-S LEVELING FEET

GN 30 Leveling feet are securely mounted and are not removable, the solid rubber pad is firmly embedded in the sheet metal base and secured by a screw loctited into place. The threaded stud can be either adjusted via an internal hexagon at the top or a wrench flats at the lower end.

Body Material: Steel

Surface Finish: Zinc Plated

Rubber Pad: Santoprene (white pad)

Thread Type: Metric

Thread Diameter: M8

Stud Length: 50mm

Foot Height: 14.5mm

Foot Diameter: 50mm

GN 30 Standard Sheet
