Brand: JW Winco

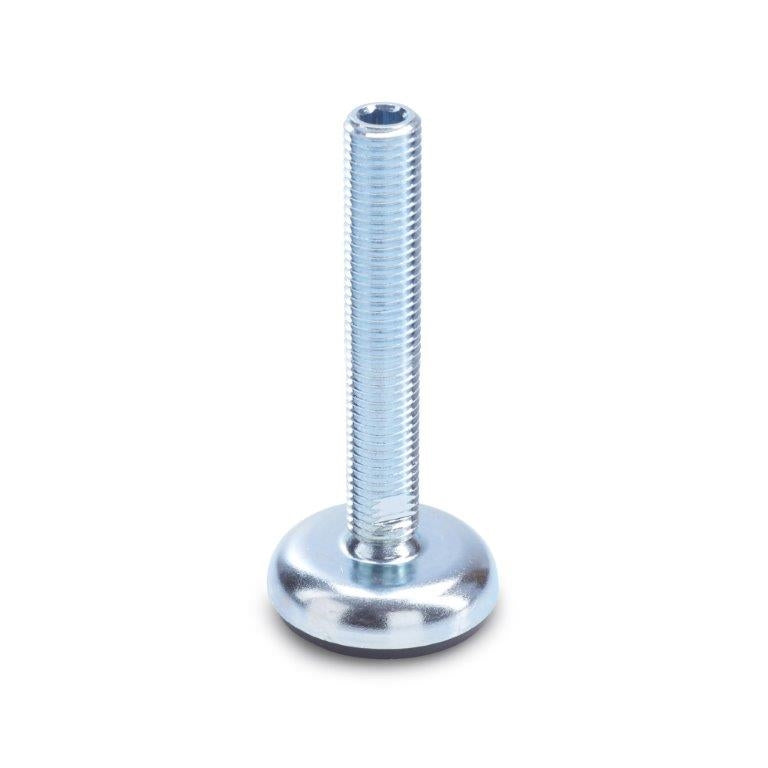

JW WINCO GN30-100-3/4X10-150-A1-UK LEVELING FEET
SKU: JW-30-100-3/4X10-150-A1-UK
MPN:
Shipping calculated at checkout.
Stock: 0
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
Short Description
JW WINCO GN30-100-3/4X10-150-A1-UK LEVELING FEETGN 30 Leveling feet are securely mounted and are not removable, the solid rubber pad is firmly embedded in the sheet metal base and secured by a screw loctited into place. The threaded stud can be either adjusted via an internal hexagon at the top or a wrench flats at the lower end.
Steel Body Material with Zinc Plated Surface Finish.
Perbunan (black pad) Rubber Pad with Inch Thread Type
GN 30 Standard Sheet
Full Description
JW WINCO GN30-100-3/4X10-150-A1-UK LEVELING FEET
GN 30 Leveling feet are securely mounted and are not removable, the solid rubber pad is firmly embedded in the sheet metal base and secured by a screw loctited into place. The threaded stud can be either adjusted via an internal hexagon at the top or a wrench flats at the lower end.
Body Material: Steel
Surface Finish: Zinc Plated
Rubber Pad: Perbunan (black pad)
Thread Type: Inch
Thread Diameter: 3/4-10
Stud Length: 5.91"
Foot Height: .790"
Foot Diameter: 3.94"
