Brand: HALDER

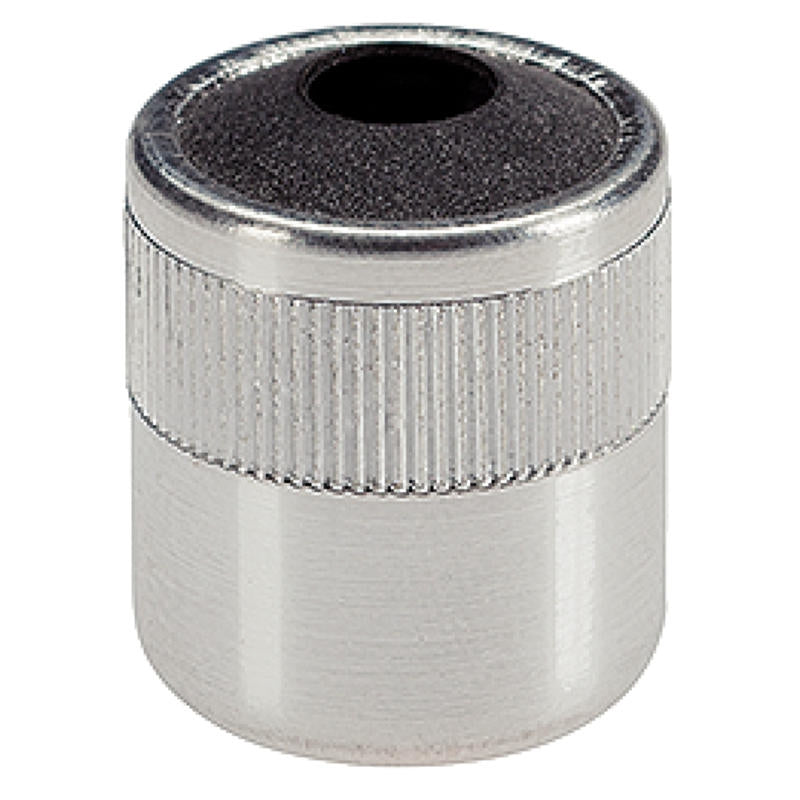

Lateral Plunger - 2B150.1141

SKU: EH-2B150.1141
MPN: 2B150.1141

$13.61
Unit price per
Save $0.71

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Lateral Plungers smooth, with seal, with female thread - INCH 2B150.1141.
EH 2B150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 2B150.1141 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Sealed against chips and dirt.

Material

Seal

Body

Aluminium

Threaded washer

Steel, blackened

Spring

Steel, blackened

Assembly

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = stroke,

z = stop diameter

Calculation dimension x for workpieces: x = d2/2 - s

Installation by pressing in.

Characteristic

Standard spring load = spring from steel, blackened

Notes

Individual set screws can be screwed in the plate with threaded hole.

Halder 2B150.1141 Data Sheet
