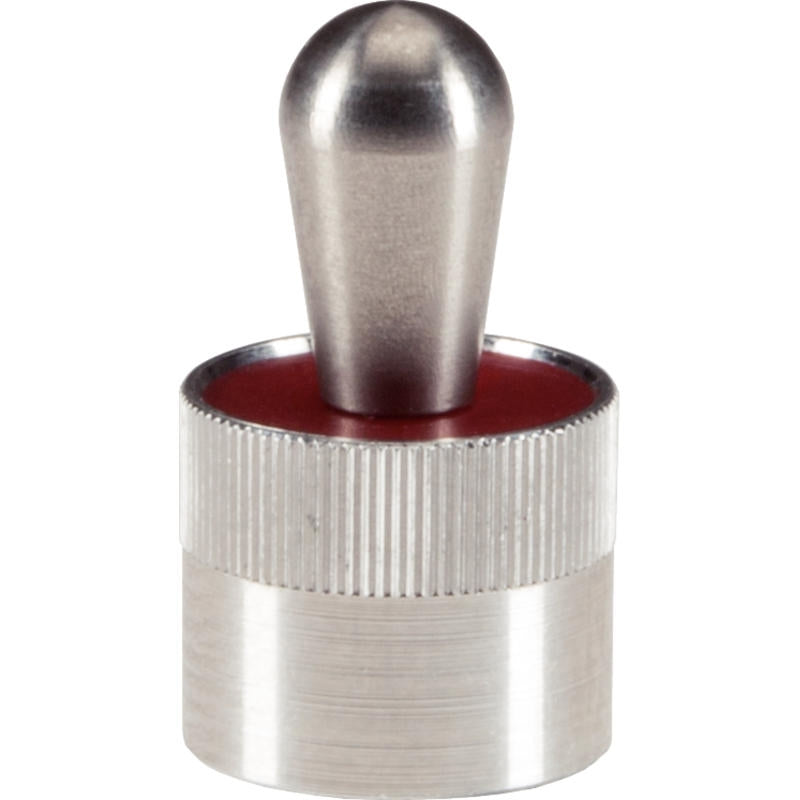

Lateral Plunger - 2B150.0321

Brand: HALDER

Lateral Plunger - 2B150.0321

SKU: EH-2B150.0321
MPN: 2B150.0321

  • $6.18
    Unit price per
  • Save $0.45
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Lateral Plungers with plastic spring and pin - INCH 2B150.0321.
EH 2B150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 2B150.0321 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Material

Body

  • Aluminium

Spring

  • Plastic

Pin

  • Stainless steel

Assembly

Installation by pressing in.

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = coordinate dimension,

s = stroke,

z = stop diameter

Calculation dimension x:

y greater than or equal to l2 - d2/2, then x = d2/2 - s

or

y smaller than l2 - d2/2, then x = d2/2-s-[(l2-d2/2-y)*0,123]

Characteristic

Standard spring load = red spring

Halder 2B150.0321 Data Sheet
