Brand: Jergens Manufacturing

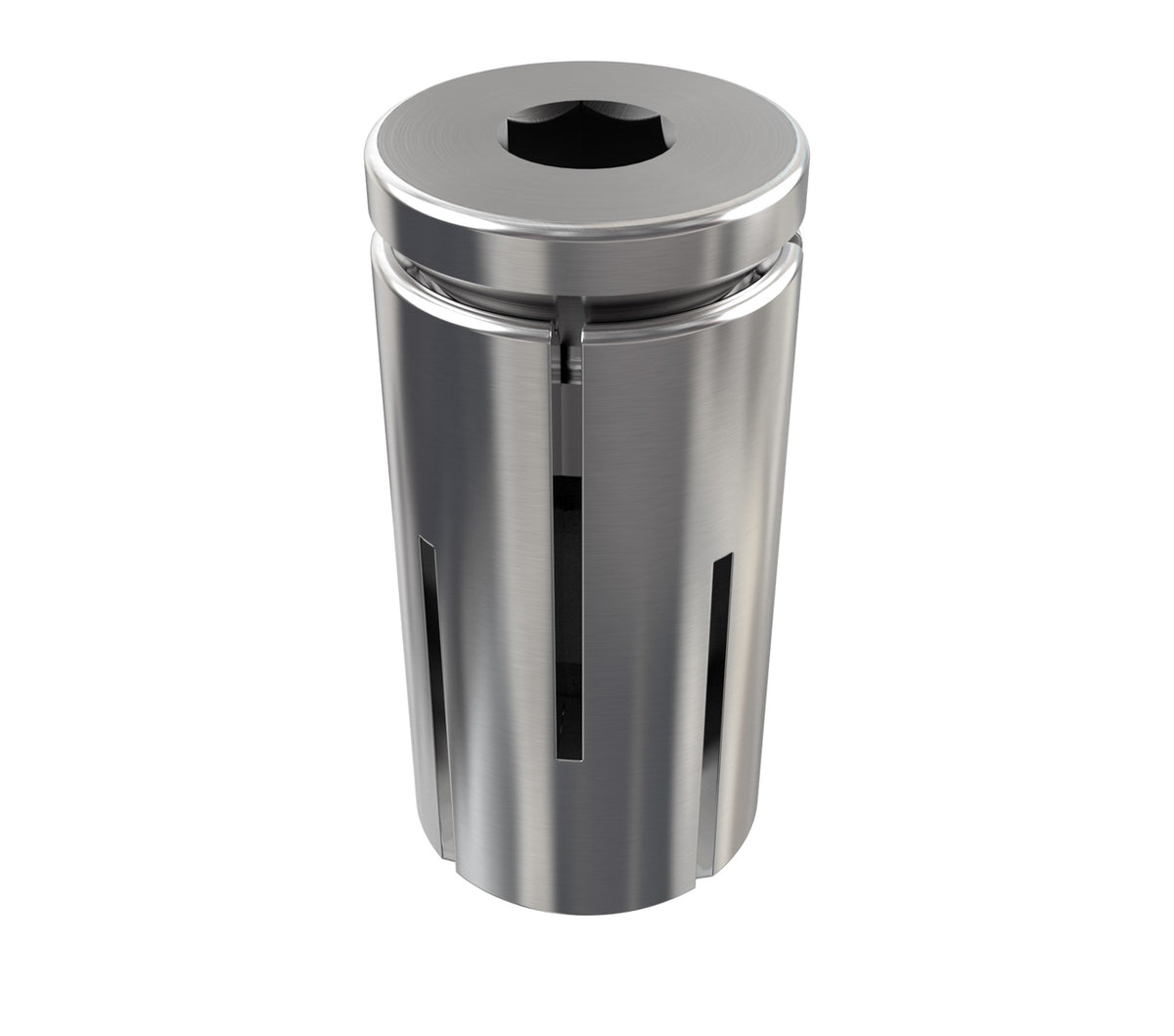

JERGENS PREC EXP DOWEL, 10 X 20 - 29451
SKU: JG-29451
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS PREC EXP DOWEL, 10 X 20 - 29451Category: Precision Expanding Dowels / DexLoc™ Locator Pins - Metric
Product Code: F101-1
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS PREC EXP DOWEL, 10 X 20 - 29451
Category: Precision Expanding Dowels / DexLoc„¢ Locator Pins - Metric
Product Code: F101-1
Category: 4671
Product Code: 111508

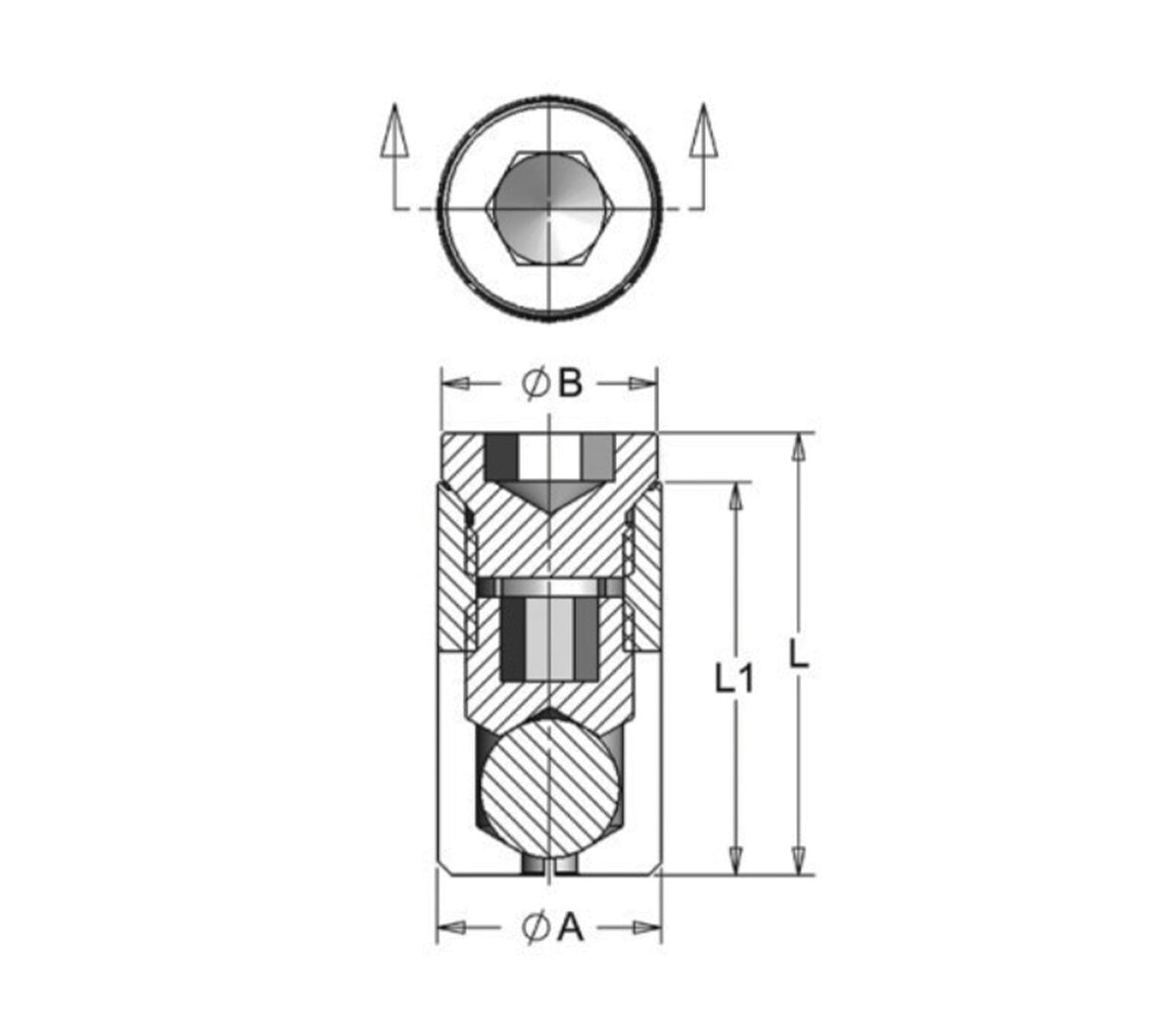

| Part Number | Description | BOCK Part Numbers | Nominal Diameter (mm) | Nominal Length (H) (mm) | Recommended Hole Diameter +0.025 / -0.000 (mm) | "A" DIA. +0.000 / -0.025 (mm) | "B" DIA. +0.000 / -0.254 (mm) | H1 +/- 0.13 (mm) | Hex Key Size Bottom (step 1) | Hex Key Size Top (step 2) |
|---|---|---|---|---|---|---|---|---|---|---|
| 29451 | Precision Expanding Dowels / DexLocu2122 Locator Pins | DEX-10 | 10 | 20 | 10 | 9.98 | 9.88 | 17.45 | 3 | 4 |
*All Jergens orders must meet a $75 minimum*
