Brand: Mitee-Bite

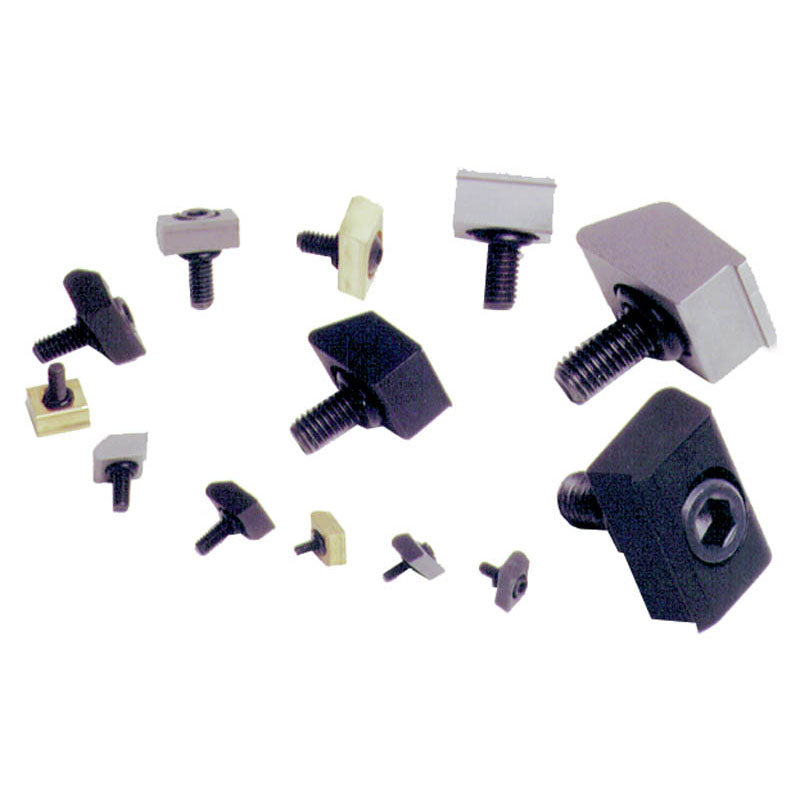

Mitee-Bite SG7026030 Model 26030 - 8-32 Thread Size - Tool Steel, Blunt Edge Pitbull Clamp
SKU: FTS-SG7026030
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Mitee-Bite 26030 Model 26030 - 8-32 Thread Size - Tool Steel, Blunt Edge Pitbull ClampFull Description
| Type | Blunt Edge Pitbull Clamp | Holding Force | 1,500 lbs |
| Thread Size | #8-32 | Standard Pack | 8 |
| Overall Width | 1/2" | Style | Inch |
| Material | Tool Steel | Flange Thickness | 0.100" |
| Torque | 45 | Centerline Distance | 0.200" |
| Model No | 26030 | Slot Depth | 0.187" |
| Slot Width | 1/2" | Thread Depth | 0.390" |
| Clamp Height | .100" | Thread Length | 0.390" |
| Total Throw | .016" |
• Use Pitbull® Clamps and machine with confidence • The Pitbull® Clamp is a revolutionary new fixture clamp with positive down force and a low gripping profile • High vertical and horizontal clamping forces are generated, considering the size of the Pitbull® Clamps • It uses a standard cap screw and an oil resistant O-ring.
