Brand: Allied Machine and Eng.

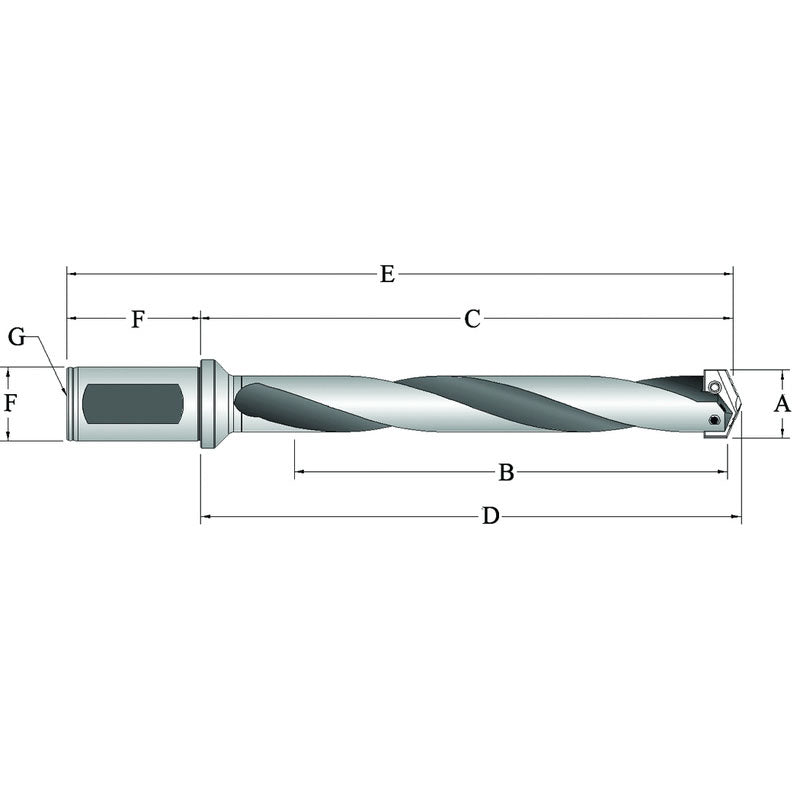

Allied Machine and Eng. BA55250Y0H075F Series Y - 3/4" Straight SH x 7-9/16" OAL - T-A Spade Drill Holder
SKU: FTS-BA55250Y0H075F
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Allied Machine and Eng. 250Y0H-075F Series Y - 3/4" Straight SH x 7-9/16" OAL - T-A Spade Drill HolderFull Description
| Cutting Diameter (DC) | 3/8" to 27/64" | Shank Length (LS) | 2-1/32" |
| Usable Length (LU) | 4-3/8" | Measurement Type | Fractional |
| Shank Type | Round | Flute Type | Helical |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Decimal Equivalent | 0.375" to 0.421875" |
| Protruding Length (LPR) | 5-17/32" |
• T-A® Drill Insert HoldersCoolant Fed Flanged and Straight Shank • T-A® Drill Insert holders are also available in XLand 3XLlengths including metric versions of most sizes. Call for pricing. When using the Extended, Long, XL and 3XL holders without a support bushing, AMEC recommends using a short T-A® holder to establish an initial hole two to three times diameters deep Never start or continue rotation of this tool holder without proper engagement with a work piece or fixture. Failure to do so could result in tool failure and/or personal injury. Series 0.5, 1.5 and 2.5 TA® Drill Insert Holders are available with a larger body diameter than the standard series, which yields added support for drill inserts and higher inertial strength. This reduces holder failure in high torque applications. Call for pricing.
