Brand: Iscar

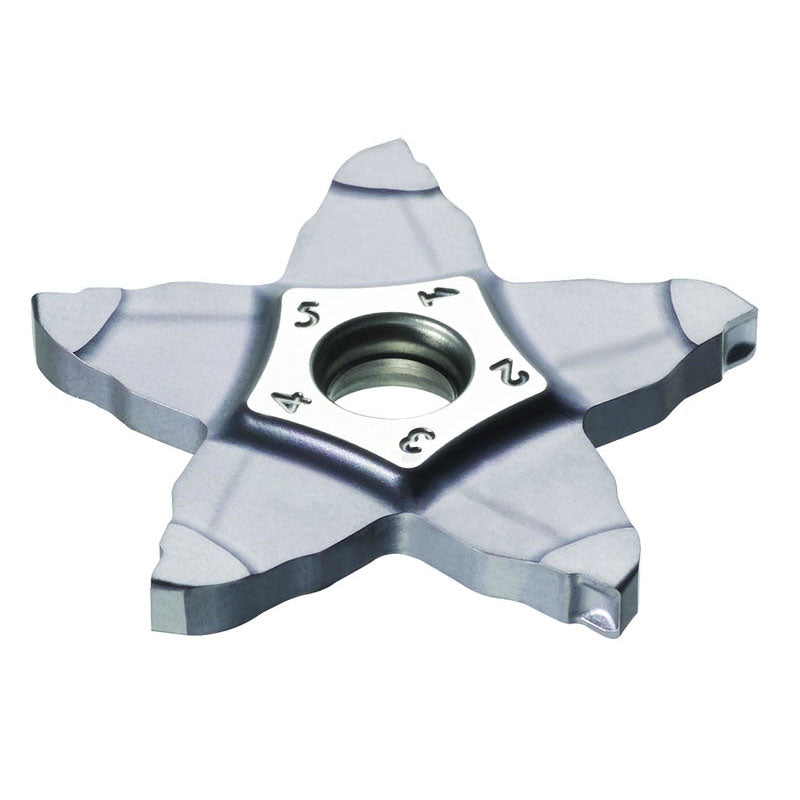

Iscar EH6097584 PENTA 24N200NF020RS IC908
SKU: FTS-EH6097584
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6097584 PENTA 24N200NF020RS IC908Full Description
| Cutting Width (CW) | 0.079" | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Corner Radius (RE) | 0.0079" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Cutting Depth Maximum (CDX) | 0.118" | Max. Grooving Feed (fg(max)) | 0.0039 "/rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0012 "/rev |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Functional Width (WF) | 0.039" |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
Family Description
Parting and precision grooving pentagonal inserts. Used for next to high shoulder applications.
For parting and grooving range, click on "More Info".
