Brand: Jergens Manufacturing

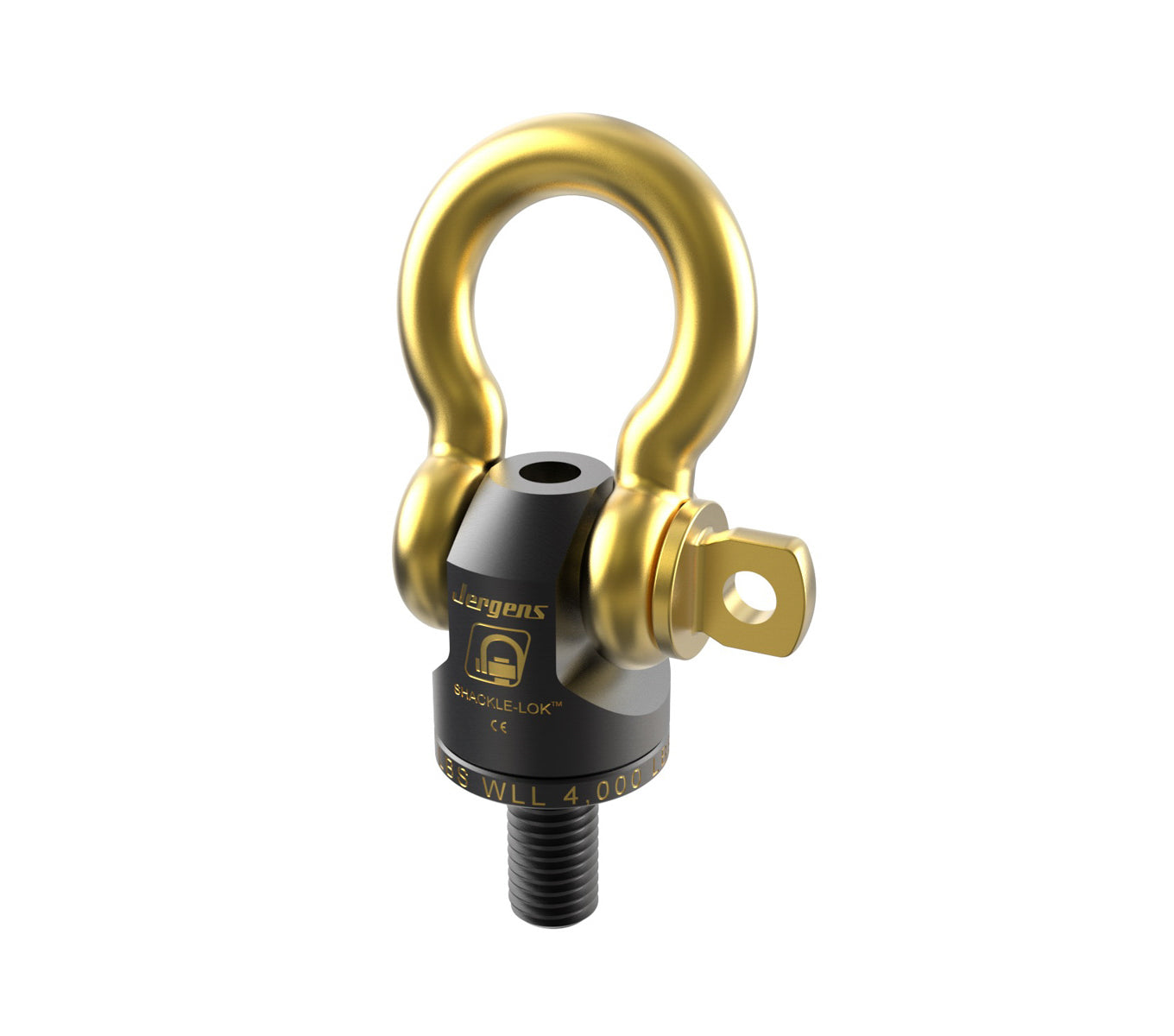

JERGENS HOIST RING, CP, SHACKLE STYLE, 3/4-10, C=1.50, #5000 LBS WLL, W/BALL BRGS, AND SHACKLE FOR LIFTING RING - 24413

SKU: JG-24413
MPN: 24413

$452.21
Unit price per
Save $2.49

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

JERGENS HOIST RING, CP, SHACKLE STYLE, 3/4-10, C=1.50, #5000 LBS WLL, W/BALL BRGS, AND SHACKLE FOR LIFTING RING - 24413
Category: Shackle-Lok™ Hoist Ring - Inch
Product Code: F115-3

*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JERGENS HOIST RING, CP, SHACKLE STYLE, 3/4-10, C=1.50, #5000 LBS WLL, W/BALL BRGS, AND SHACKLE FOR LIFTING RING - 24413
Category: Shackle-Lok„¢ Hoist Ring - Inch
Product Code: F115-3

Category: 4959

Product Code: 111658

Part Number	Description	Part Number w/out Shackle	Thread Size (A)	Load(1) Capacity (lbs)	Length With Shackle (B1)	Length w/out Shackle (B2)	Thread Length (C)	Inside Shackle Radius (D)	Shackle Diameter size (E)	Width With Shackle (F1)	Width w/out Shackle (F2)	Inside Shackle Clearance (G)	Pin Hole to base (H)	Pin Hole Diameter (I)	Web Thickness (J)	Torque (2) (lbs*ft)	Weight (lbs) With Shackle	Weight (lbs) w/out Shackle	Hex Size
24413	Shackle-Loku2122 Hoist Ring - Inch	24413NS	3/4-10	5000	5.56	2.71	1 1/2	0.94	5/8	3.72	2.3	2.23	2.06	.79	.98	69	3.48	2.04	3/8

JERGENS HOIST RING, CP, SHACKLE STYLE, 3/4-10, C=1.50, #5000 LBS WLL, W/BALL BRGS, AND SHACKLE FOR LIFTING RING - 24413
