Brand: HALDER

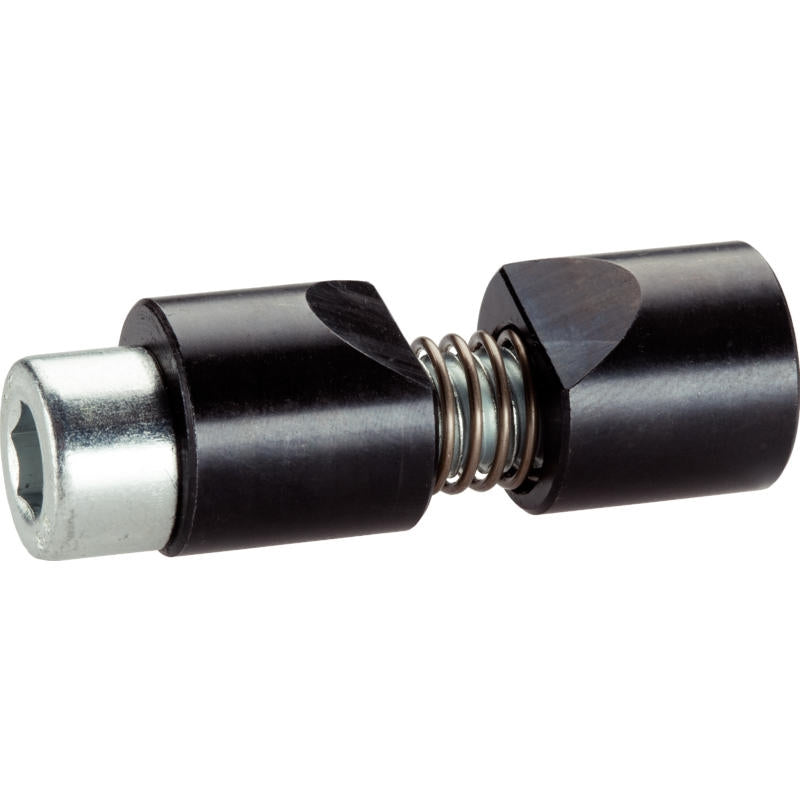

Shaft Clamp - 23341.0030
SKU: EH-23341.0030
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Shaft Clamps 23341.0030.EH 23341
Shaft clamps used to clamp round workpieces, e.g. shafts, axels, tubes or rods voth axially and radially.
Halder 23341.0030 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Shaft clamps used to clamp round workpieces, e.g. shafts, axels, tubes or rods voth axially and radially.
Material
Body
- Steel, blackened
Clamping screw
- Steel, zinc-plated (DIN 912)
Assembly
- Expand the clamping jaws to the diameter of the shaft to be clamped.
- Insert shaft clamp into hole using the assembly tool.
- Insert and position the shaft.
- Clamp using cylinder screw WS (observe tightening torque).
Notes
The thread d3 serves to hold the assembly tool (optional).
