Brand: HALDER

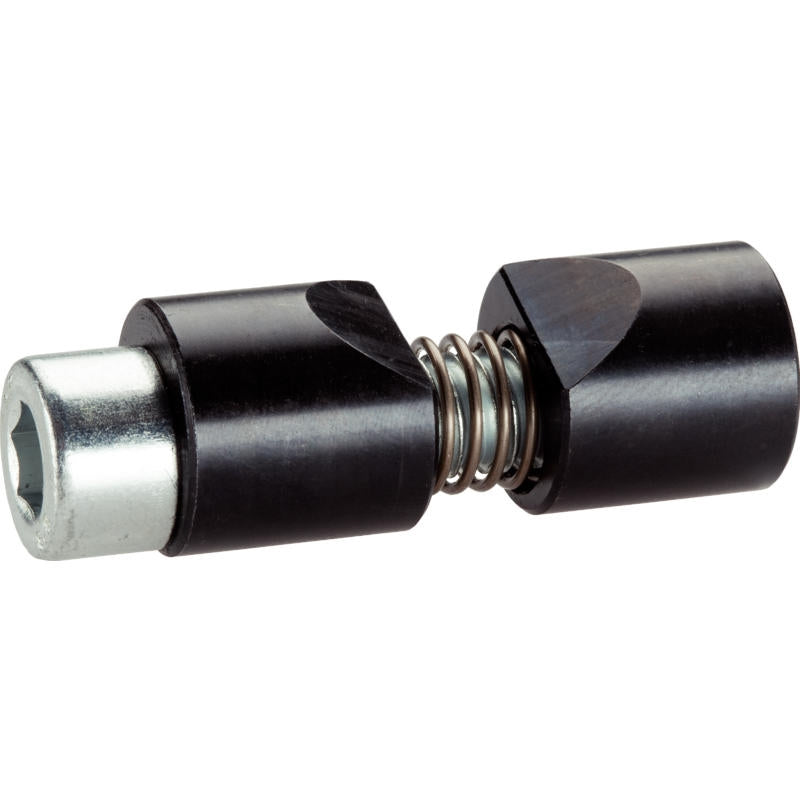

Shaft Clamp - 23341.0025

SKU: EH-23341.0025
MPN: 23341.0025

$56.61
Unit price per
Save $2.95

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Shaft Clamps 23341.0025.
EH 23341
Shaft clamps used to clamp round workpieces, e.g. shafts, axels, tubes or rods voth axially and radially.
Halder 23341.0025 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Shaft clamps used to clamp round workpieces, e.g. shafts, axels, tubes or rods voth axially and radially.

Material

Body

Steel, blackened

Clamping screw

Steel, zinc-plated (DIN 912)

Assembly

Expand the clamping jaws to the diameter of the shaft to be clamped.
Insert shaft clamp into hole using the assembly tool.
Insert and position the shaft.
Clamp using cylinder screw WS (observe tightening torque).

Notes

The thread d3 serves to hold the assembly tool (optional).
