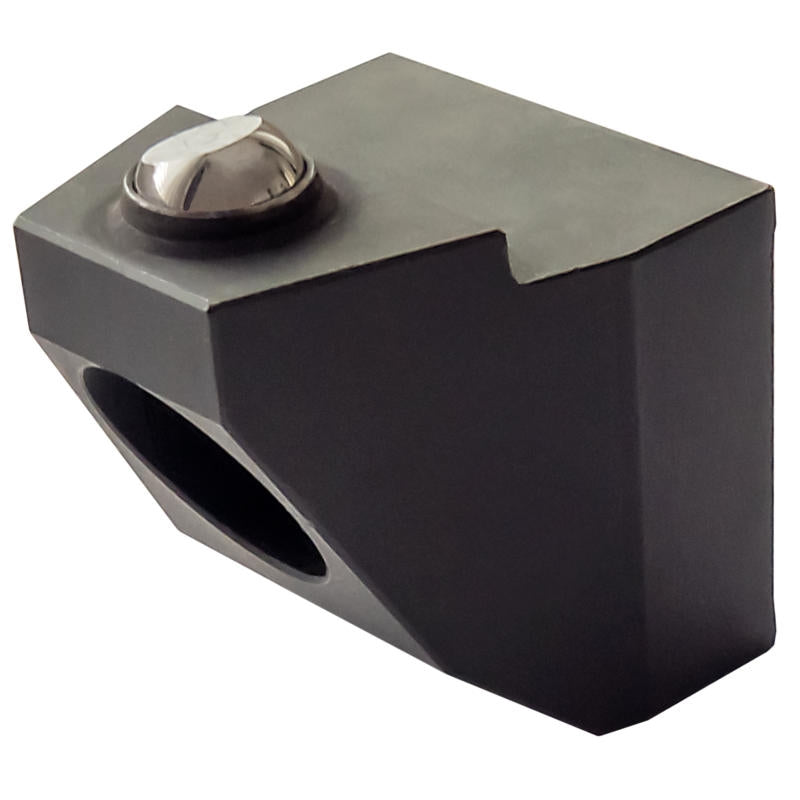

Clamping Jaw - 23320.0148

Brand: HALDER

Clamping Jaw - 23320.0148

SKU: EH-23320.0148
MPN: 23320.0148

  • $248.66
    Unit price per
  • Save $18.19
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Clamping Jaws for floating clamp M 12 23320.0148.
EH 23320
The clamping jaws can be used for the floating clamps 23320.0008, 23320.0012 and 23320.0014.
The upper clamping jaw (23320.0054, 23320.0056 abd 23320.0058 - picture 1-3) can be used to increase the clamping range.
In the upper clamping jaw with female thread M 8 (23320.0154 /.0156 - picture 4 + 5) different standard parts can be screwed in as required.
The lower clamping jaw with pivot function (23320.0148 - picture 6) adapts to the draughts of the workpiece.
Halder 23320.0148 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

The clamping jaws can be used for the floating clamps 23320.0008, 23320.0012 and 23320.0014.

The upper clamping jaw (23320.0054, 23320.0056 abd 23320.0058 - picture 1-3) can be used to increase the clamping range.

In the upper clamping jaw with female thread M 8 (23320.0154 /.0156 - picture 4 + 5) different standard parts can be screwed in as required.

The lower clamping jaw with pivot function (23320.0148 - picture 6) adapts to the draughts of the workpiece.

Material

Ball

  • Ball-bearing steel

Clamping Jaws

  • Case hardened steel, nitrided, manganese phosphate treated

Notes

The tightening torque of the floating clamp must be adapted/reduced situationally. Observe the surface pressure due the the reduced contact surface of the clamping jaws.

Halder 23320.0148 Data Sheet
