Brand: HALDER

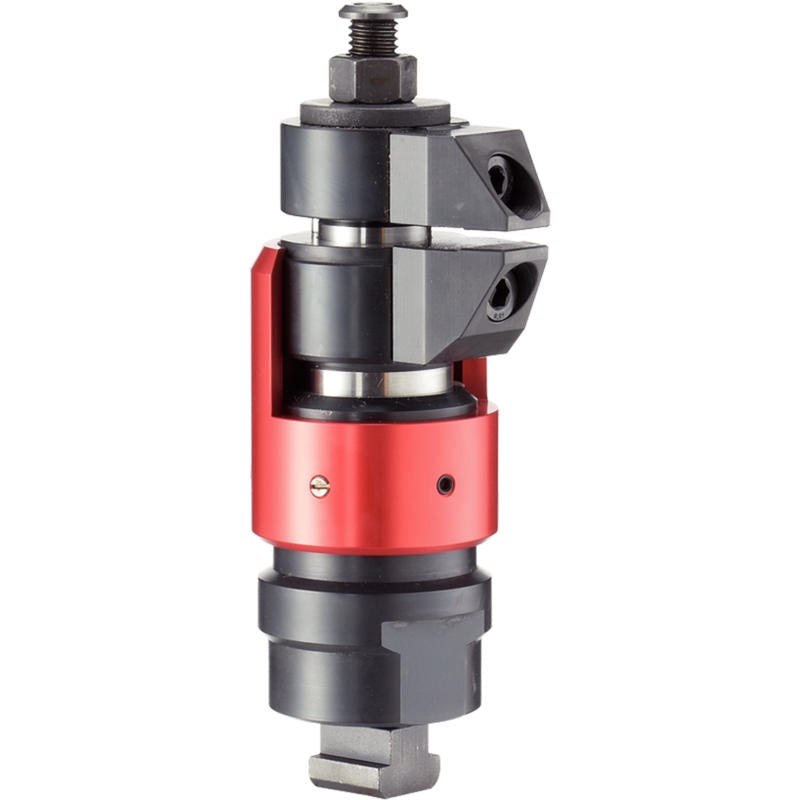

Floating Clamp - 23320.0012
SKU: EH-23320.0012
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Floating Clamps combined clamping and locking M 12 23320.0012.EH 23320
The floating clamp is used to clamp and support additional clamping points on components.
The benefits of the floating clamp are:
avoids vibration during the processing
clamps ribs, beads and shackles to reinforce clamped components
distortion-free clamping of raw parts.
Halder 23320.0012 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
The floating clamp is used to clamp and support additional clamping points on components.
The benefits of the floating clamp are:
- avoids vibration during the processing
- clamps ribs, beads and shackles to reinforce clamped components
- distortion-free clamping of raw parts.
Material
Adjustable body
- Aluminium, red anodised
Body
- Case hardened steel, nitrided, manganese phosphate treated and ground
Clamping Jaws
- Case hardened steel, nitrided, manganese phosphate treated
Assembly
- Mount the floating clamp (M12 connection thread) onto the device with a wrench (WS46).
- Adjust the height limit stop and the rotating area with the red sleeve and clamp with a set screw (3xWS2.5). When setting the height limit, consider tolerance of workpiece.
Operation
- Push the floating clamp downwards.
- Pivot the clamping jaws in as far as possible. The floating clamp contacts the bottom of the workpiece with a slight spring load.
- Tighten the floating clamp with a hexagonal nut (WS 18) having a min. torque of 15 Nm and a maximum torque of 30 Nm. In the clamping process, the workpiece is clamped and simultaneously supported.
- Releasing is done in reverse order.
Notes
The thread bore must always be closed for safe functioning, e.g. set screw M 12 x 10.
For specific clamping situations, the standard clamping jaws supplied can be exchanged or replaced (see catalogue drawing: screw ISO4762-M8-12.9, Mmax.=43Nm).
References
Additional flexible possibility of fitting with holder 23470.0250 or holding plate for down-hold clamps 23210.0740.
Accessories
As an accessory, we offer clamping jaws with an increased clamping range, refer to 23320.0050-.0058, as well as pivot jaws, refer to 23320.0148-.0156.
