Floating Clamp - 23320.0008

Brand: HALDER

Floating Clamp - 23320.0008

SKU: EH-23320.0008
MPN: 23320.0008

  • $1,671.11
    Unit price per
  • Save $122.23
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

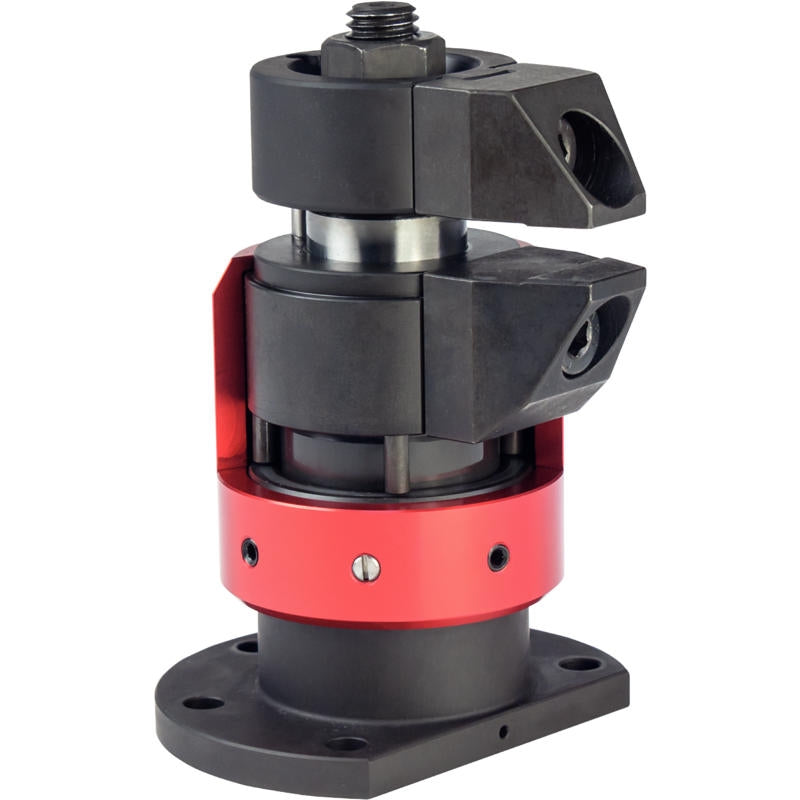

Floating Clamps compact construction, combined clamping and locking M 12 23320.0008.
EH 23320
The floating clamp is used to clamp and support additional clamping points on components.
The benefits of the floating clamp are:
avoids vibration during the processing
clamps ribs, beads and shackles to reinforce clamped components
distortion-free clamping of raw parts
compact version with reduced height.
Halder 23320.0008 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

The floating clamp is used to clamp and support additional clamping points on components.

The benefits of the floating clamp are:

  • avoids vibration during the processing
  • clamps ribs, beads and shackles to reinforce clamped components
  • distortion-free clamping of raw parts
  • compact version with reduced height.

Material

Adjustable body

  • Aluminium, red anodised

Body

  • Case hardened steel, nitrided, manganese phosphate treated and ground

Clamping Jaws

  • Case hardened steel, nitrided, manganese phosphate treated

Assembly

  • Mount the floating clamp (mounting holes for M 6, see drawing ) onto the device.
  • Adjust the height limit stop and the rotating area with the sleeve and clamp with a set screw (4x WS 2.5). When setting the height limit, consider tolerance of workpiece.

Operation

  • Push the floating clamp downwards.
  • Pivot the clamping jaws in as far as possible. The floating clamp contacts the bottom of the work piece with a slight spring load.
  • Tighten the floating clamp with a hexagonal nut (WS 18) having a min. torque of 15 Nm and a maximum torque of 30 Nm. In the clamping process, the workpiece is clamped and simultaneously supported.
  • Releasing is done in reverse order.

Notes

For specific clamping situations, the standard clamping jaws supplied can be exchanged or replaced (see catalogue drawing: screw ISO4762-M8-12.9, Mmax.=43Nm).

Accessories

As an accessory, we offer clamping jaws with an increased clamping range, refer to 23320.0050-.0058, as well as pivot jaws, refer to 23320.0148-.0156.

Halder 23320.0008 Data Sheet
