Brand: HALDER

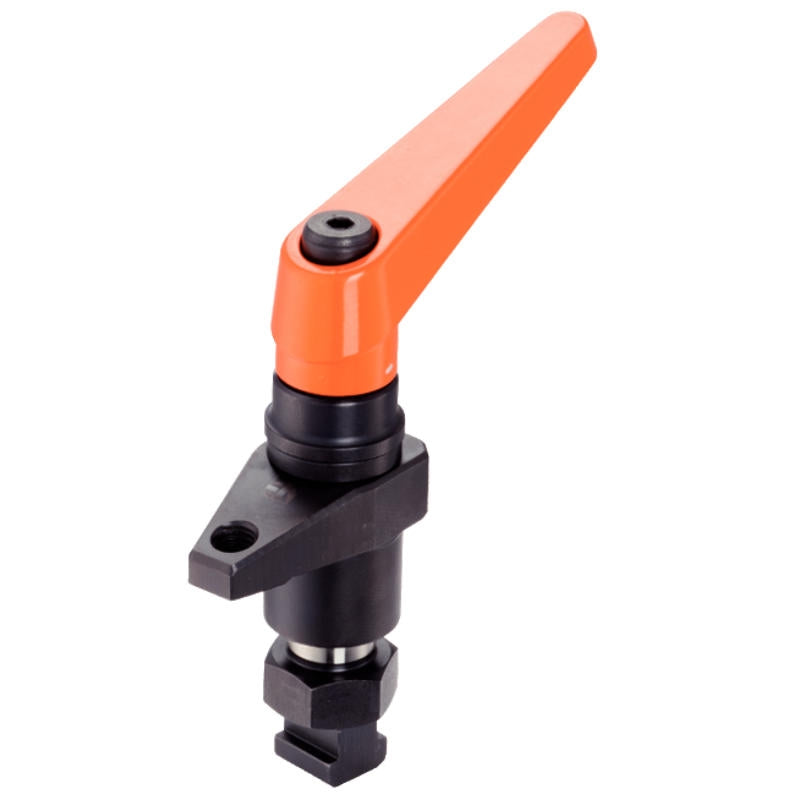

Down-Thrust Clamp - 23310.0024
SKU: EH-23310.0024
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Down-Thrust Clamps size 25 23310.0024.EH 23310
Universal mechanical clamping element for fast and comfortable changing and clamping of workpieces by means of manually swivelling clamping claw.
The down-thrust clamps provide the following advantages:
Rapid manual clamping by means of clamping screw, adjustable clamping lever or adjustable eccentric quick clamp.
Easy and quick changing of the workpiece by swinging the clamping head to the left or right.
Reduced space requirements due to the compact design.
Easy adaption even to larger clamping heights by means of height adjusting cylinders.
Halder 23310.0024 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Universal mechanical clamping element for fast and comfortable changing and clamping of workpieces by means of manually swivelling clamping claw.
The down-thrust clamps provide the following advantages:
- Rapid manual clamping by means of clamping screw, adjustable clamping lever or adjustable eccentric quick clamp.
- Easy and quick changing of the workpiece by swinging the clamping head to the left or right.
- Reduced space requirements due to the compact design.
- Easy adaption even to larger clamping heights by means of height adjusting cylinders.
Material
- Case-hardened steel, case-hardened, blackened and ground
Assembly
Down-thrust clamps can be fastened in two different ways:
- with a nut for T-slots (DIN508)
- with a set screw directly in the mounting plate e.g. of a fixture
The cylinder has to rest on the entire surface.
References
The clamping height can be increased with EH 23310. height adjusting cylinders and EH 1007. washers, and equally lowered by using clamping elements e.g. EH 22730.
