Brand: HALDER

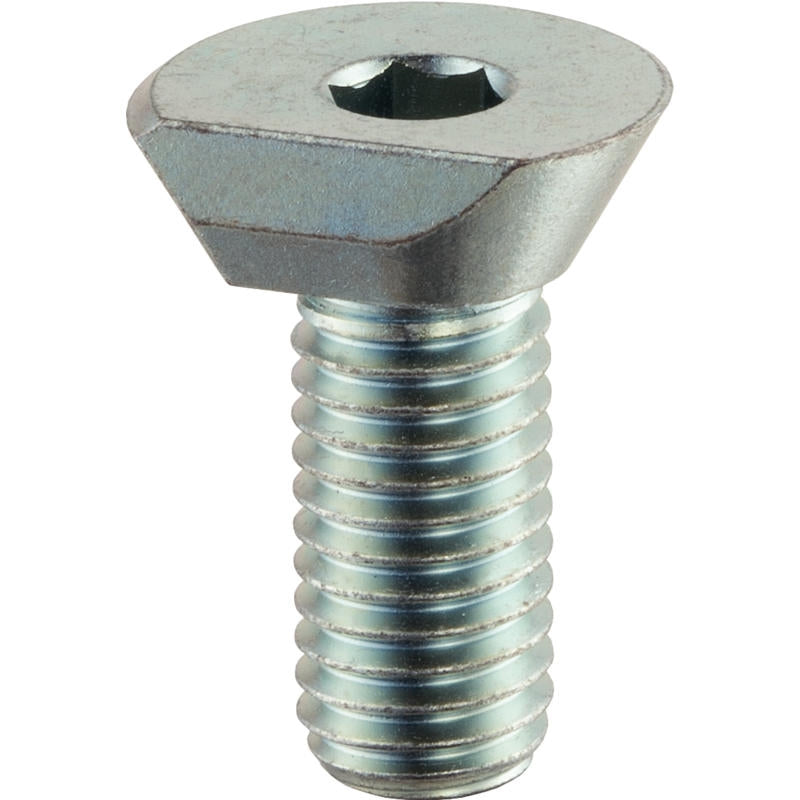

Eccentric Clamp - 23271.0010
SKU: EH-23271.0010
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Eccentric Clamps 23271.0010.EH 23271
The eccentric clamp allows clamping with pull-down effect on different workpiece forms at low height.
Halder 23271.0010 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
The eccentric clamp allows clamping with pull-down effect on different workpiece forms at low height.
Material
- Case-hardened steel, case-hardened and blue zinc-plated
Assembly
- Manufacture a thread with the corresponding distance L2 / L3 to the workpiece.
- Screw in the eccentric clamp at the necessary height and set it relative to the workpiece with its flat side.
- Insert the workpiece and tighten the clamping pin using the internal hexagon. The proper tension is achieved after approx. 1/3 turn.
The threaded hole must be lubricated on a regular basis.
The rotational movement during tightening must always be completed towards the stops in order to prevent the workpiece from turning away from the stops.
