Brand: HALDER

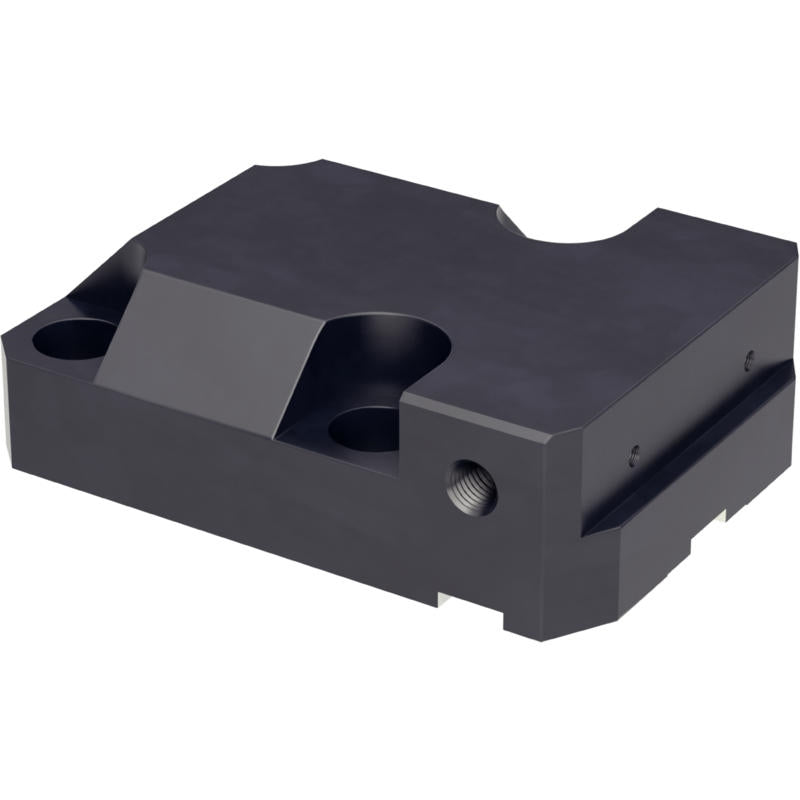

Clamping Vice - 23231.0011
SKU: EH-23231.0011
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Clamping Vices 23231.0011.EH 23231
The clamping vice is a solid, compact clamping module with a horizontally acting clamping force and a robust mechanical spindle.
Clamping force up to max. 80 kN.
Clamping stroke 25 mm via screw drive WS 36.
fixture via 4 cap screws M 24, quality 8.8 (tightening torque 600 Nm) with a hole spacing 100 x 100 mm.
suitable clamping jaws 23231.0020 -.0033 are available.
Halder 23231.0011 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
The clamping vice is a solid, compact clamping module with a horizontally acting clamping force and a robust mechanical spindle.
- clamping force up to max. 80 kN
- clamping stroke 25 mm via screw drive WS 36
- fixture via 4 cap screws M 24, quality 8.8 (tightening torque 600 Nm) with a hole spacing 100 x 100 mm
- suitable clamping jaws 23231.0020 -.0033 are available
Material
- Steel, case-hardened, ground
