Brand: HALDER

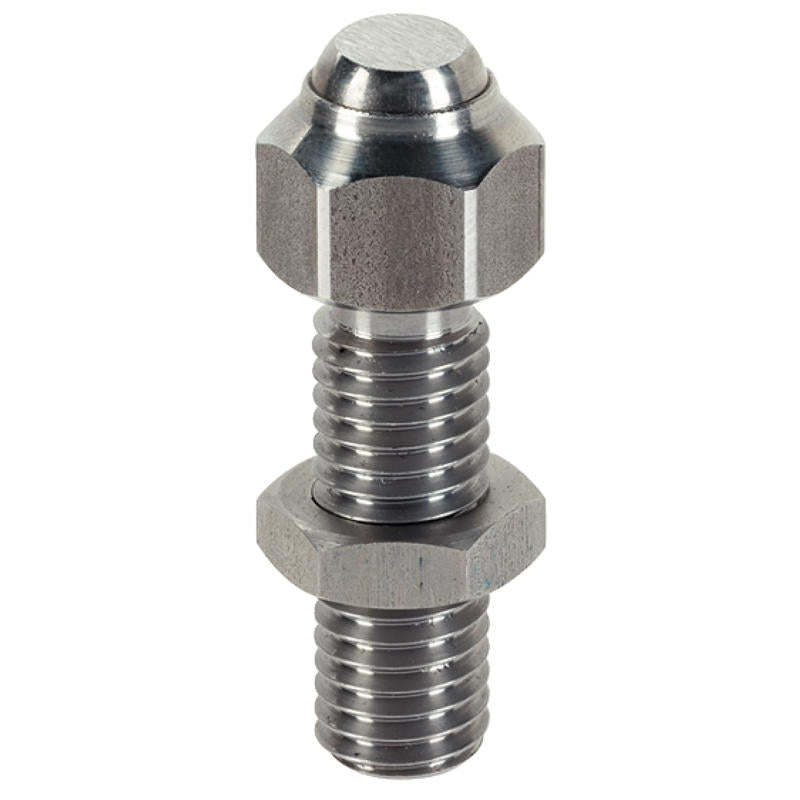

Self-Aligning Pad - 22741.0130

SKU: EH-22741.0130
MPN: 22741.013

$249.36
Unit price per
Save $12.99

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Self-Aligning Pads adjustable with self-resetting 22741.0130.
EH 22741
Self-aligning pads are used as stop, support and thrust pad and are suitable for installation in clamping elements.
By resetting to the parallel position the contact point of the self-aligning pad provides a defined initial position, thus preventing the pad clamping in an oblique position when inserting the workpiece.
Halder 22741.0130 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Self-aligning pads are used as stop, support and thrust pad and are suitable for installation in clamping elements.

By resetting to the parallel position the contact point of the self-aligning pad provides a defined initial position, thus preventing the pad clamping in an oblique position when inserting the workpiece.

Material

Spring element

Thermoplastic PUR

Ball

Stainless steel 1.3541, nickel-plated

Body

Stainless steel 1.4057, heat-treated

Nut

Stainless steel

Notes

Ball protected against rotating.

Loading capacity valid for steel and stainless steel designs.

Special types on request.

Halder 22741.0130 Data Sheet
