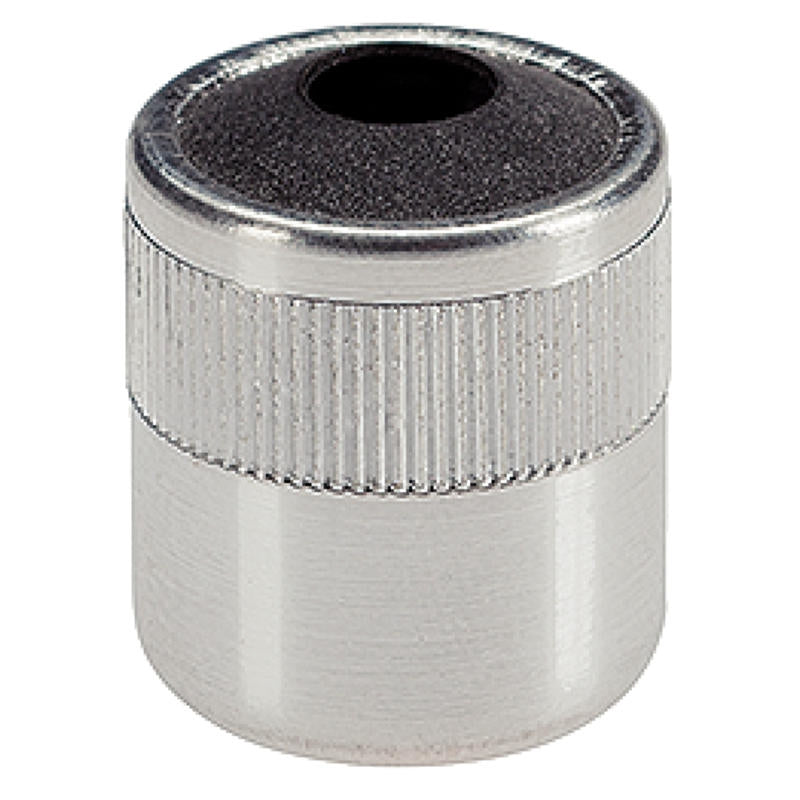

Lateral Plunger - 22150.1140
SKU: EH-22150.1140
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Lateral Plungers smooth, with seal, with female thread 22150.1140.EH 22150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Sealed against chips and dirt.
Halder 22150.1140 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Sealed against chips and dirt.
Material
Seal
- CR
Body
- Aluminium
Threaded washer
- Steel, blackened
Spring
- Stainless steel
Assembly
Formula for calculating the center distance for the mounting hole:
l0 = z/2 + w + x,
l0 = center distance,
y = workpiece height,
w = workpiece length,
x = stroke,
z = stop diameter
Calculation dimension x for workpieces: x = d2/2 - s
Installation by pressing in.
Characteristic
Light spring load = spring from stainless steel
Notes
Individual set screws can be screwed in the plate with threaded hole.
