Brand: HALDER
Lateral Plunger - 22150.1041
SKU: EH-22150.1041
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description

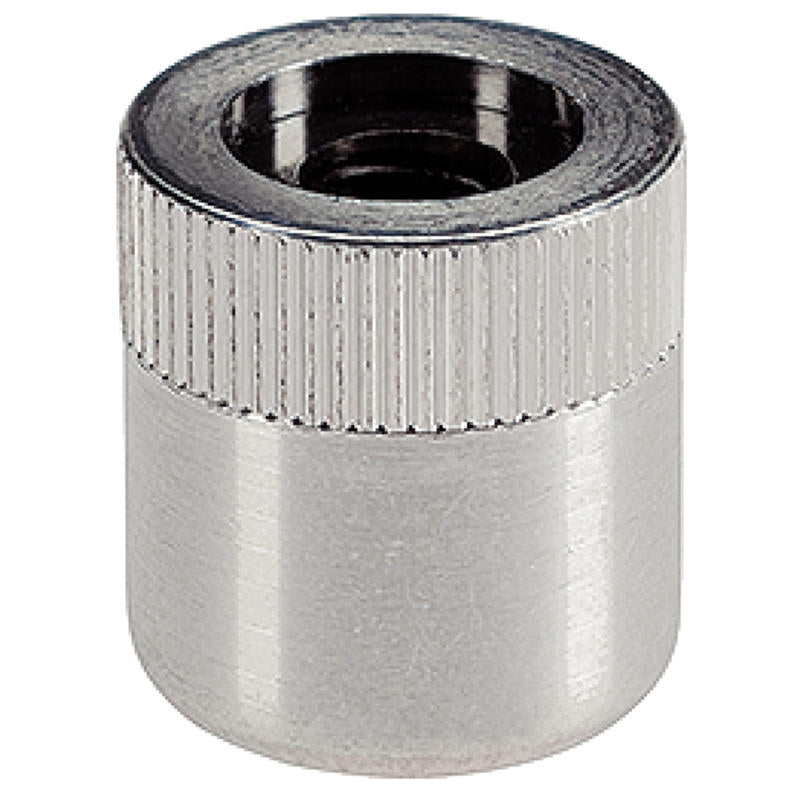

Lateral Plungers smooth, without seal, with female thread 22150.1041.EH 22150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 22150.1041 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Material
Body
- Aluminium
Threaded washer
- Steel, blackened
Spring
- Steel, blackened
Assembly
Formula for calculating the center distance for the mounting hole:
l0 = z/2 + w + x,
l0 = center distance,
y = workpiece height,
w = workpiece length,
x = stroke,
z = stop diameter
Calculation dimension x for workpieces: x = d2/2 - s
Installation by pressing in.
Characteristic
Standard spring load = spring from steel, blackened
Notes
Individual set screws can be screwed in the plate with threaded hole.
