Lateral Plunger - 22150.1021

Brand: HALDER

Lateral Plunger - 22150.1021

SKU: EH-22150.1021
MPN: 22150.1021

  • $5.51
    Unit price per
  • Save $0.29
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

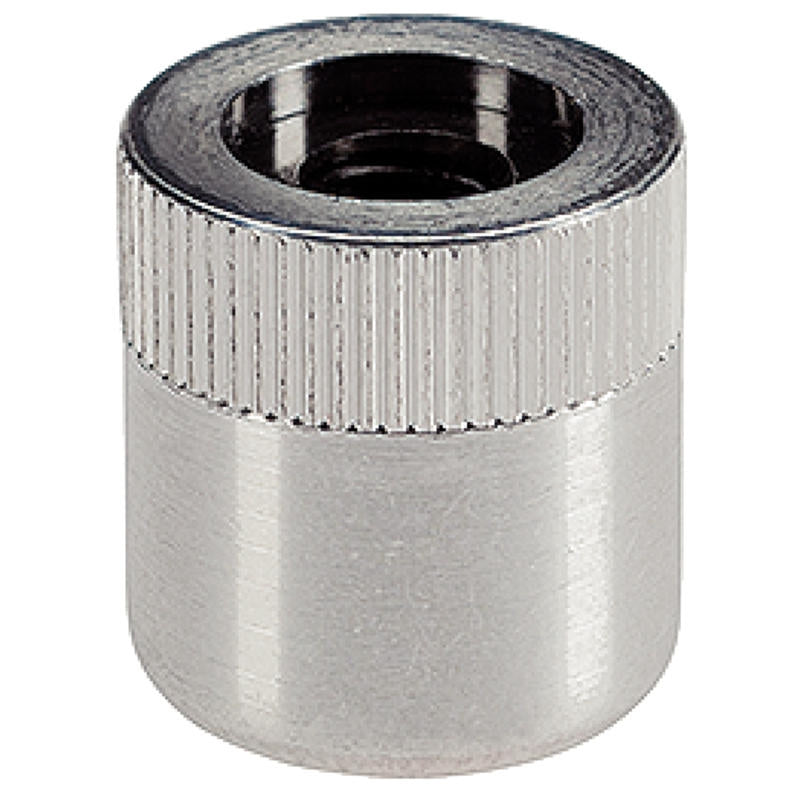

Lateral Plungers smooth, without seal, with female thread 22150.1021.
EH 22150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 22150.1021 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Material

Body

  • Aluminium

Threaded washer

  • Steel, blackened

Spring

  • Steel, blackened

Assembly

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = stroke,

z = stop diameter

Calculation dimension x for workpieces: x = d2/2 - s

Installation by pressing in.

Characteristic

Standard spring load = spring from steel, blackened

Notes

Individual set screws can be screwed in the plate with threaded hole.

Halder 22150.1021 Data Sheet
